SUNWON would like to send to customers the price list of 240mm2 electric cable. The unit price has not been discounted, does not include 10% VAT , customers who want to order, please contact us at the information below the article for a discount.
240mm2 power cable is a conductor with a cross section of 240mm2, used to transmit voltages from 450V/750V to 36kV or higher, including:
Electrical Wires
- Cable structure: 1 conductive core consisting of 37 concentrically twisted and twisted aluminum circular aluminum wires, core cross section 240mm2; 2.2mm thick PVC sheath;
- Unit price: 62,100 VND/m.
Low Voltage Cables

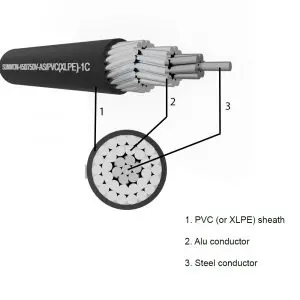

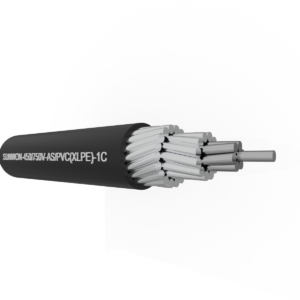

- Cable structure: 1 conductor consisting of 7 technical round steel wires and 26 or 30 concentrically twisted aluminum round wires, core cross section 240/39mm2 or 240/56mm2; 2mm or 2.9mm thick PVC sheath;
- Unit price:
- For cables with a cross section of 240/32mm2: 118,600d/m;
- For cables with a cross section of 240/39mm2: 119,200d/m;
- For cables with a cross section of 240/56mm2: 131,400d/m.
Electrical Wires

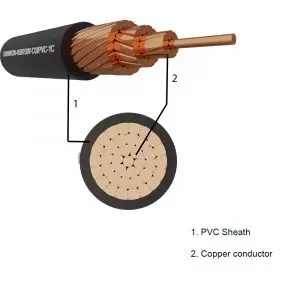

- Cable structure: 1 conductive core including 61 concentrically twisted and twisted technical copper wires, core area 240mm2; 24.7mm thick PVC sheath;
- Unit price: 950,700 VND/m.
Low Voltage Cables

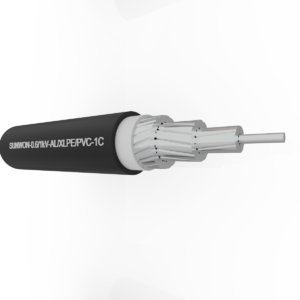

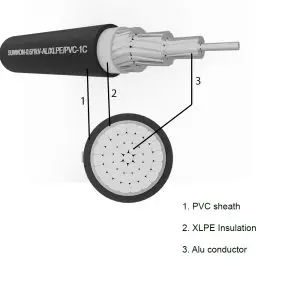

- Cable structure : 1 conductive core consisting of 37 concentrically twisted and twisted aluminum circular aluminum wires, core area 240mm2; 1.7mm thick XLPE insulation and 1.7mm thick PVC sheath;
- Unit price: 98,300 VND/m.
Low Voltage Cables

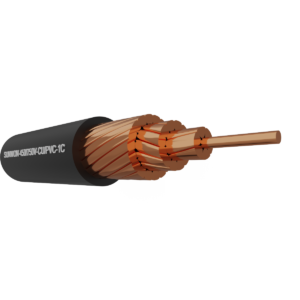

- Cable structure: 1 conductor, including 61 concentrically twisted and twisted technical copper wires; core area 240mm2; 1.7mm thick white XLPE insulation, 1.7mm thick PVC sheath;
- Unit price: 959,700 VND/m.
Low Voltage Cables
- Cable structure: 3 conductor cores, each core consists of 37 concentrically twisted and twisted aluminum circular aluminum wires, the cross-section of each core is 240mm2; 1.7mm thick XLPE insulated core, 2.0mm thick PVC sheath;
- Unit price: 333,100 VND/m.
Low Voltage Cables
- Cable structure: 3 conductor cores, each core consists of 61 concentrically twisted electrical engineering circular copper wires, each core has a cross section of 240mm2; 1.7mm thick XLPE insulated core; 2.9mm thick PVC sheath;
- Unit price: 2,911,900 VND/m.
Low Voltage Cables
- Cable structure: 4 conductive cores, each core consists of 37 concentrically twisted electro-technically twisted aluminum circular wires, the cross-section of each core is 240mm2; 1.7mm thick XLPE insulated core, 2.0mm thick PVC sheath;
- Unit price: 440,200 VND/m.
Low Voltage Cables
- Cable structure: 4 conductor cores, each core consists of 61 concentrically twisted electrical engineering circular copper wires, with a cross section of each core 240mm2; 1.7mm thick XLPE insulated core; 2.4mm thick PVC sheath;
- Unit price: 3,866,700 VND/m.
Low Voltage Cables
- Cable structure: consisting of 3 phase cores and 1 neutral core, each phase core consists of 37 concentrically twisted electro-technical round aluminum wires, the neutral core consists of 19 twisted aluminum strands; cross section of each phase core is 240mm2, neutral core cross section is 150mm2; 1.7mm XLPE insulation for phase core and 1.4mm for neutral core; 2.4mm thick PVC sheath;
- Unit price: 398,400 VND/m2.
- Customers can choose a neutral core with a cross section of 120mm2 or 185mm.
Low Voltage Cables
- Cable structure: consisting of 3 phase cores and 1 neutral core, each phase core consists of 61 concentrically twisted electrical engineering circular copper wires, the neutral core consists of 37 concentrically twisted round aluminum wires; cross section of each phase core is 240mm2, neutral core cross section is 150mm2; 1.7mm XLPE insulation for phase core and 1.4mm for neutral core; 2.4mm thick PVC sheath;
- Unit price: 3,489,100 VND/m;
- Customers can choose a neutral core with a cross section of 120mm2 or 185mm.
Low Voltage Cables
Low Voltage Cables
Low Voltage Cables
- Cable structure: Includes 5 conductive cores, including 3 phase cores and 2 smaller neutral cores. Each phase core consists of 61 concentrically twisted electrical technical circular copper wires, each neutral core has 37 concentric twisted round copper wires. Phase core has a cross section of 240mm2, neutral core has a cross section of 150mm2. Core with XLPE insulation, PVC sheath.
- Unit price: 4,100,000 VND/m.
Low Voltage Cables
- Cable structure: Includes 5 conductive cores, including 1 smaller neutral core. 4 phase cores consist of 61 concentrically twisted electrical engineering circular copper wires, the neutral core has 37 concentrically twisted round copper wires. 4 phase cores with a cross section of 240mm2, neutral cores with a cross section of 150mm2. Core with XLPE insulation, PVC sheath.
- Unit price: 4,455,300 VND/m.
Low Voltage Cables
- Cable structure: Consists of 5 conductive cores, each core consists of 61 concentrically twisted electrical engineering circular copper wires, the cross-section of each core is 240mm2. Core with XLPE insulation, PVC sheath.
- Unit price: 4,884,100 VND/m.
Twisted Electrical Cable
- Cable structure : including 4 conductive cores, each core has 61 concentrically twisted electrical engineering circular copper wires, each core has a cross section of 240mm2; Each core is wrapped with 2mm thick XLPE insulation.
Medium Voltage Cables
- Cable structure : the core consists of 7 round steel strands and 26 or 30 concentrically twisted electrical engineering aluminum circular strands; core cross section 240/32mm2, 240/39mm2 or 240/56mm2; 0.5mm semiconductor thickness, 4.3mm XLPE insulation; HDPE sheath thickness 2mm;
- Unit price:
- If the insulation is 4.3mm: VND 165,200/m2 for core 240/32, VND 165,900/m2 for core 240/39, VND 176,800/m for core 240/56;
- If the insulation is 5.5mm: 179,100d/m for the 240/32 core, 179,700d/m for the 240/39 core, 190,800d/m for the 240/56 core.
Twisted Electrical Cable
- Cable structure : includes 3 conductor cores, each core has 37 concentrically twisted and twisted aluminum circular wires, each core has a cross section of 240mm2; each core is XLPE insulated;
- Unit price: 284,800 VND/m.
Twisted Electrical Cable
- Cable structure : including 4 conductive cores, each core has 37 concentrically twisted and twisted aluminum circular wires, each core has a cross section of 240mm2; each core is wrapped with 2mm XLPE day insulation;
- Unit price: 379,800 VND/m.
Low Voltage Cables
- Cable structure : includes 3 conductor cores, each core has 37 concentrically twisted and twisted aluminum circular wires, each core has a cross section of 240mm2; each core is covered with 1.7mm thick XLPE insulation; steel tape thickness 0.6mm; PVC sheath thickness 2.4mm;
- Unit price: 397,100 VND/m.
Low Voltage Cables
- Cable structure : including 3 conductor cores, each core has 61 concentrically twisted and twisted copper wires, each core has a cross section of 240mm2; each core is covered with 1.7mm XLPE insulation; steel tape thickness 0.6mm; PVC sheath thickness 2.4mm;
- Unit price: 3,026,000 VND/m.
Low Voltage Cables
- Cable structure : including 4 conductor cores, each core has 37 concentrically twisted and twisted aluminum circular wires, each core has a cross section of 240mm2; each core is covered with 1.7mm thick XLPE insulation; steel tape thickness 0.6mm; PVC sheath thickness 2.4mm;
- Unit price: 537,800 VND/m.
Low Voltage Cables
- Cable structure : consists of 4 conductors, each core has 37 concentrically twisted and twisted copper wires, each core has a cross section of 240mm2; each core is covered with 1.7mm XLPE insulation; steel tape thickness 0.6mm; PVC sheath thickness 2.4mm;
- Unit price: 3,994,600 VND/m.
Low Voltage Cables
4-cores underground aluminum cable SUNWON-0.6/1kV-AXSV 3x+1x
- Cable structure : including 3 phase cores and 1 neutral core, each phase core has 37 concentrically twisted and twisted aluminum technical round wires, the neutral core has 19 twisted round aluminum wires; each phase core has a cross section of 240mm2, the neutral core has a cross section of 150mm2; 1.7mm thick XLPE insulation for phase core and 1.4mm for neutral core; steel tape thickness 0.6mm; PVC sheath thickness 2.4mm;
- Unit price: 488,900 VND/m2.
- Customers can choose a neutral core with a cross section of 120mm2 or 185mm2.
Low Voltage Cables
- Cable structure: consisting of 3 phase cores and 1 neutral core, each phase core consists of 61 concentrically twisted electrical engineering circular copper wires, the neutral core consists of 37 concentrically twisted round aluminum wires; cross section of each phase core is 240mm2, neutral core cross section is 150mm2; 1.7mm XLPE insulation for phase core and 1.4mm for neutral core; steel tape thickness 0.6mm; 2.4mm thick PVC sheath;
- Unit price: 3,612,900 VND/m;
- Customers can choose a neutral core with a cross section of 120mm2 or 185mm2.
Low Voltage Cables
- Cable structure : including 1 conductor core, including 61 concentrically twisted electrical engineering circular copper wires, with a cross section of 240mm2; XLPE insulated core; 0.2mm aluminum tape thickness; PVC sheath thickness 1.9mm;
- Unit price: 992,600 VND/m;
Bare Electrical Cables
- Cable structure : the core consists of 7 round steel strands and 26 or 30 concentrically twisted electrical engineering aluminum circular strands; core cross section 240/39mm2 or 240/56mm2;
- Unit price:
- For cables with a cross section of 240/32mm2: 109,000 VND/m.
- For cables with a cross section of 240/39mm2: 104,500d/m.
- For cables with a cross section of 240/56mm2: VND 99,000/m.
Medium Voltage Cables
- Cable structure : the core consists of 37 concentrically twisted and twisted aluminum round aluminum wires; core area 240mm2; XLPE insulation thickness 5.5mm; PVC sheath thickness 2.0mm;
- Unit price:
- For 2.5mm XLPE insulation: 107,300 VND/m .
- For 3.5mm XLPE insulation: 117,000 VND/m.
Medium Voltage Cables
- Cable structure : the core consists of 37 concentrically twisted and twisted aluminum round aluminum wires; core area 240mm2; XLPE insulation thickness 8mm; PVC sheath thickness 2.0mm;
- Unit price: 137,500 VND/m.
Medium Voltage Cables
Aluminum Cable with Steel Core SUNWON- 12/20 (24) kV- ASXV 1x

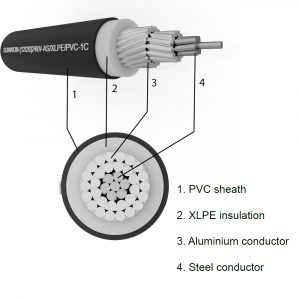

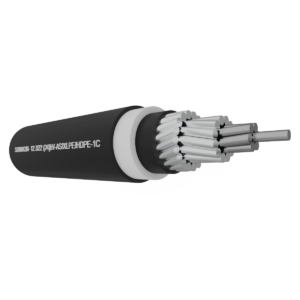

- Cable structure : the core consists of 7 round steel strands and 26 or 30 concentrically twisted electrical engineering aluminum circular strands; core cross section 240/39mm2 or 240/56mm2; XLPE insulation 5.5mm; PVC sheath thickness 2mm;
- Unit price:
- If 2.5mm XLPE insulation: 154,400 VND/m2 for 240/32 core, 155,000 VND /m2 for 240/39 core, 165,900 VND/m2 for 240/56 core;
- If 3.5mm XLPE insulation: 165,000d/m for 240/32 core, 165,600d/m for 240/39 core, 176,600d/m for 240/56 core.
Medium Voltage Cables
Aluminum cable with steel core SUNWON- 18/30 (36) kV- ASXV 1x

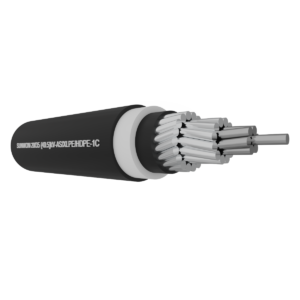

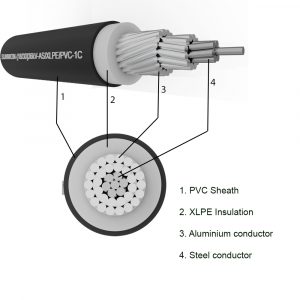

- Cable structure : the core consists of 7 round steel strands and 26 or 30 concentrically twisted electrical engineering aluminum circular strands; core cross section 240/39mm2 or 240/56mm2; XLPE insulation 8mm; PVC sheath thickness 2mm;
- Unit price:
- If XLPE insulation is 4.3mm: 174,000 VND/m2 for core 240/32, 174,500 VND/m2 for core 240/39, 185,700 VND/m2 for core 240/56;
- If XLPE insulation 5.5mm: 188,200d/m for 240/32 core, 188,700d/m for 240/39 core, 200,000d /m for 240/56 core.
Medium Voltage Cables
- Cable structure : the core consists of 7 round steel strands and 26 or 30 concentrically twisted electrical engineering aluminum circular strands; core cross section 240/32mm2, 240/39mm2 or 240/56mm2; 0.5mm semiconductor thickness, 2.5mm XLPE insulation; HDPE sheath thickness 2mm;
- Unit price:
- If the insulation is 2.5mm: 146,300d/m for the 240/32 core, 146,900d/m for the 240/39 core, 157,700d/m for the 240/56 core;
- If the insulation is 3.5mm: 156,600d/m for 240/32 core, 157,200d/m for 240/39 core, 166,000d/m for 240/56 core.
