SUNWON power cable would like to send to customers the price list of 2 soft core wire with cross section of 6mm2, product symbol SUNWON-300/500V-CU/PVC-2×6. This unit price is not discounted and does not include VAT, customers who have needs, please contact the information below this article.
2 core soft wire with cross section 6mm2 SUNWON includes 2 product lines: round wire and oval wire, product unit price is as follows:
Electrical Wires

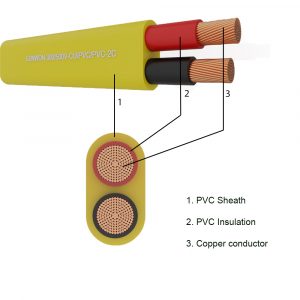

- Product structure: The wire consists of 2 soft cores, each core consists of 75 technical round copper wires twisted together to form several layers, each wire is 0.32mm in diameter. Each core has a total cross section of 6mm2 and is covered with 1mm thick PVC insulation, 1.3mm thick oval PVC outer sheath. The wire is used to transmit voltage up to 300/500V.
- Unit price: 54.300 VND/m.
SUNWON-300/500V-CU/PVC 2 core round wire
- Product structure: The wire consists of 2 soft cores, each core consists of 75 technical round copper wires twisted together to form several layers, each wire is 0.32mm in diameter. Each core has a total cross-section of 6mm2 and is covered with 1mm thick PVC insulation, 1.3mm thick circular PVC sheath. The wire is used to transmit voltage up to 300/500V.
- Unit price: 59.500 VND/m.
Regulations on production standards for 2-core flexible electric wire
SUNWON 2-core soft-core civil wire with a cross section of 6mm2 is specified in the standard TCVN 6610-5:2014 as follows:
- Common PVC sheathed flexible wire (6610 TCVN 53 or 60227 IEC 53): Rated voltage 300/500V, number of conductors from 2 to 5 and class 5 conductors (flexible conductors), PVC or PVC insulation /D average from 0.6mm; The average thickness of PVC or PVC/ST5 sheath is from 0.8mm.
==> See detail.
