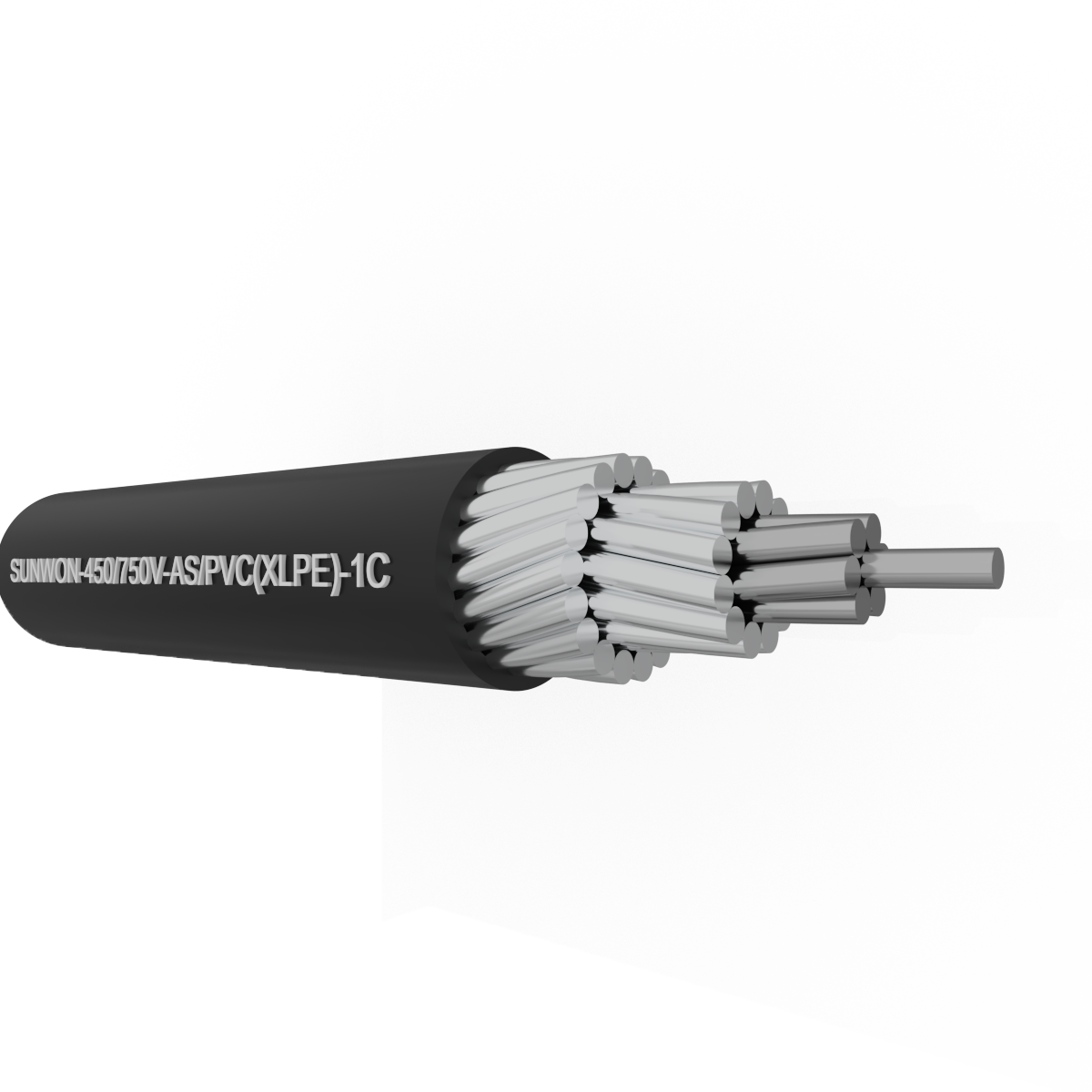

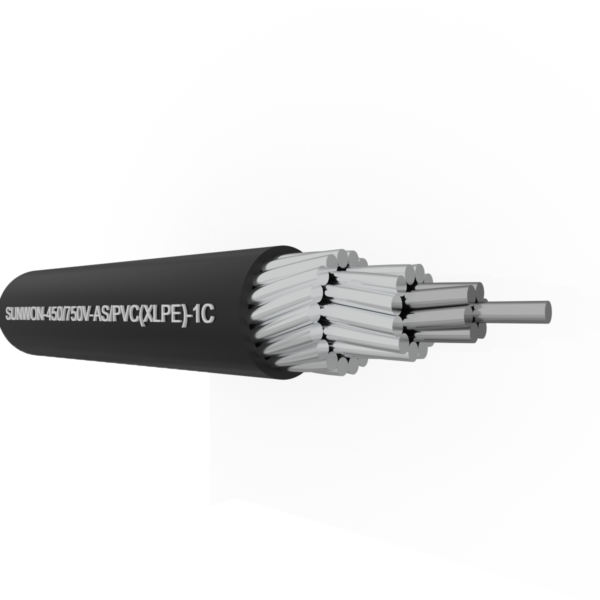

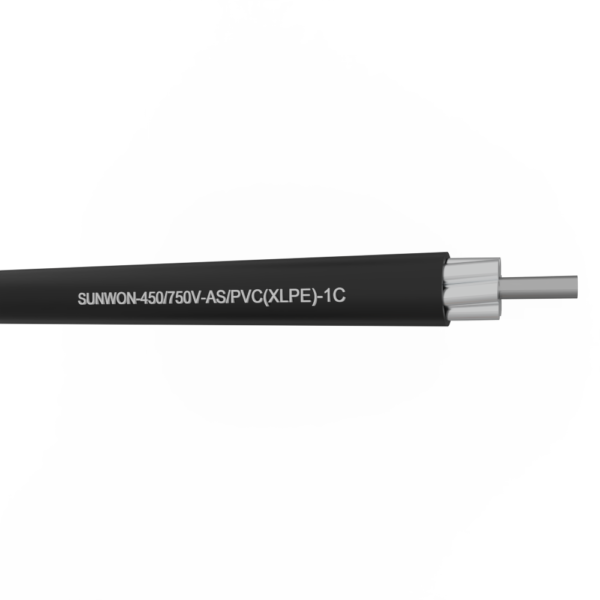

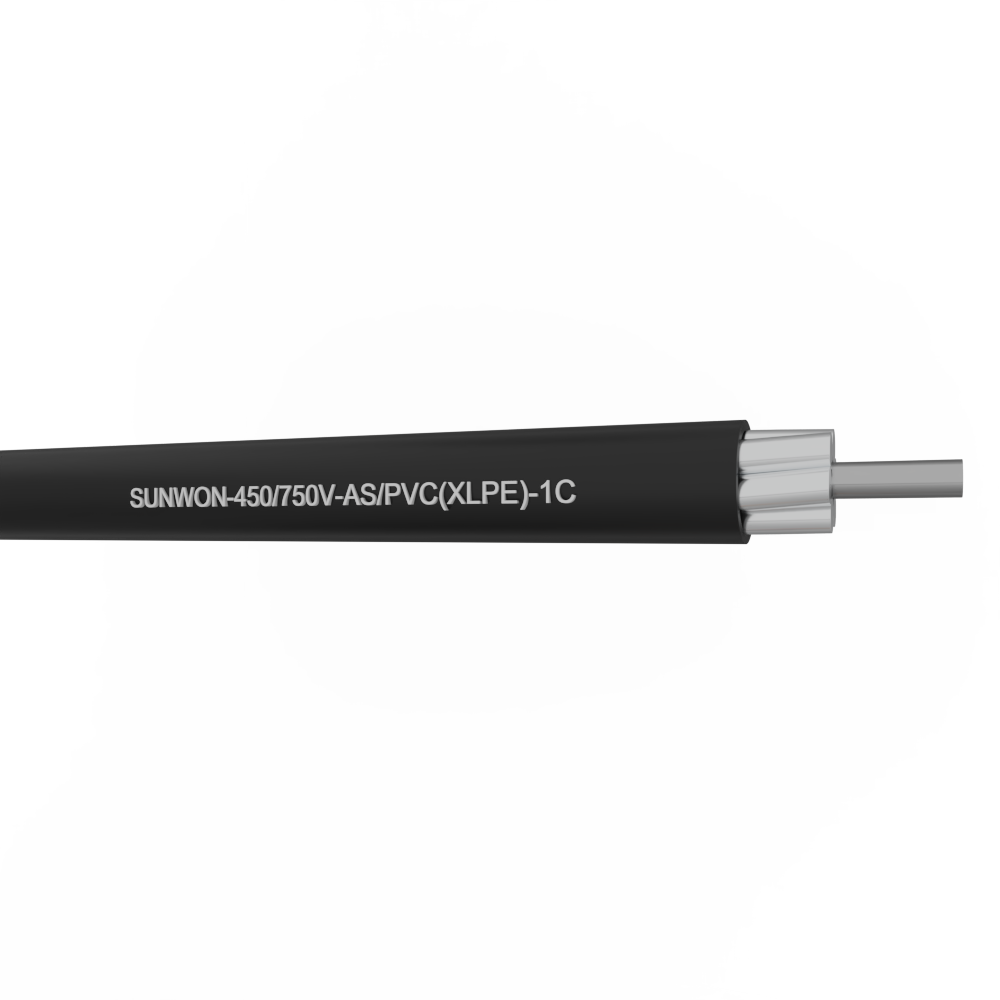

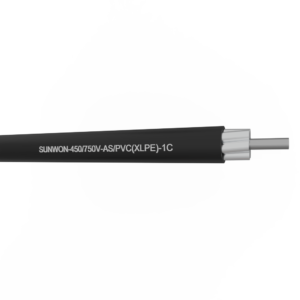

Steel aluminum cable SUNWON-0.6/1kV-AS/PVC or XLPE

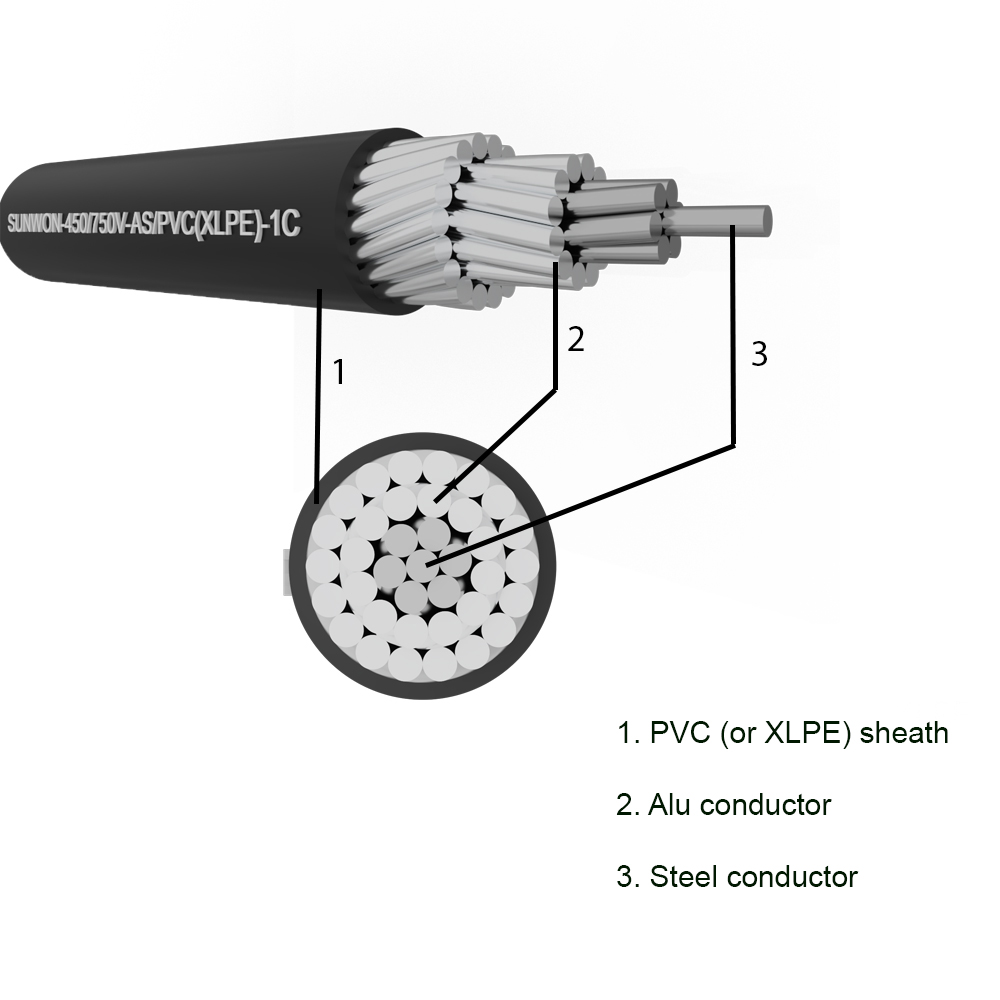

Steel aluminum cable SUNWON-0.6/1kV-AS/PVC or XLPE structure

Steel aluminum cable SUNWON-0.6/1kV-ASV/ASX 1x

PVC or XLPE coated steel core aluminum power cable is used for low voltage network, working voltage up to 450/750V.

1. Applicable standards : TCVN 6610-3 ;

2. Product structure:

Conductor core: Consisting of 1 or 2 layers of concentrically twisted galvanized steel wire with 1 or more layers of solid aluminum wire also twisted concentrically.
Insulated PVC or XLPE in black or color on request.

3. Rated voltage (Uo/U) : 450/750V.

4. Maximum conductor temperature : 70 degrees Celsius.

5. Nominal cross-section : From 16/2.7mm2 to 240/56mm2.

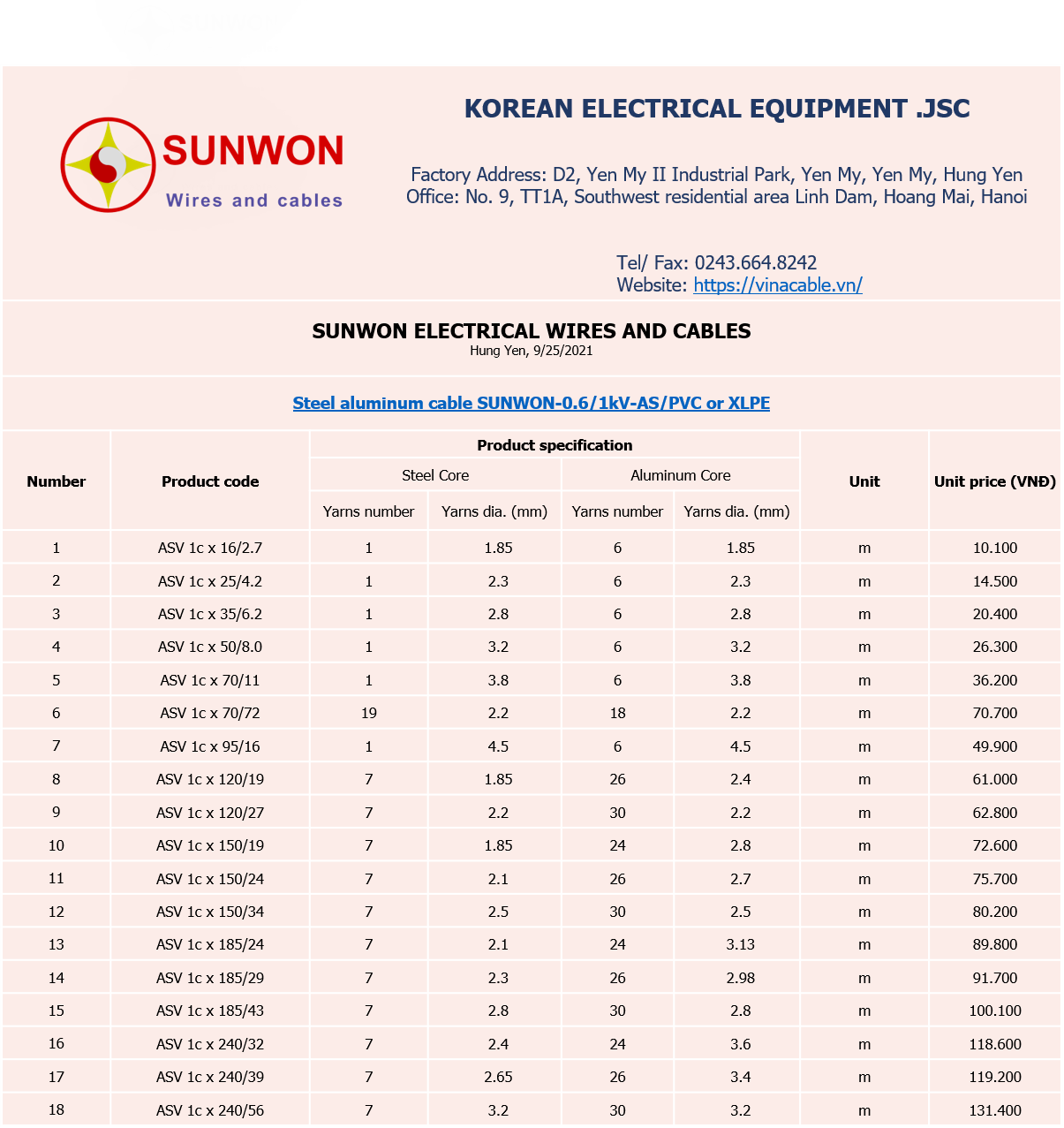

Download quote

Category: Low Voltage Cables

…

1-core steel-core aluminum cable products SUNWON-450/750V-AS/PVC or XLPE are specified in 6610 TCVN 01 or 227 IEC 01 according to the following points:

Single-core unsheathed cable with rigid conductor for general use (6610 TCVN 01 or 227 IEC 01): Rated voltage up to 450/750V, number of conductors 1 and class 1 or class 2 conductors (respectively) solid solid conductor or stranded conductor), PVC/C insulation thickness from 0.7mm, approximate outer diameter from 2.6mm, maximum conductor temperature in normal use is 70 degrees Celsius.

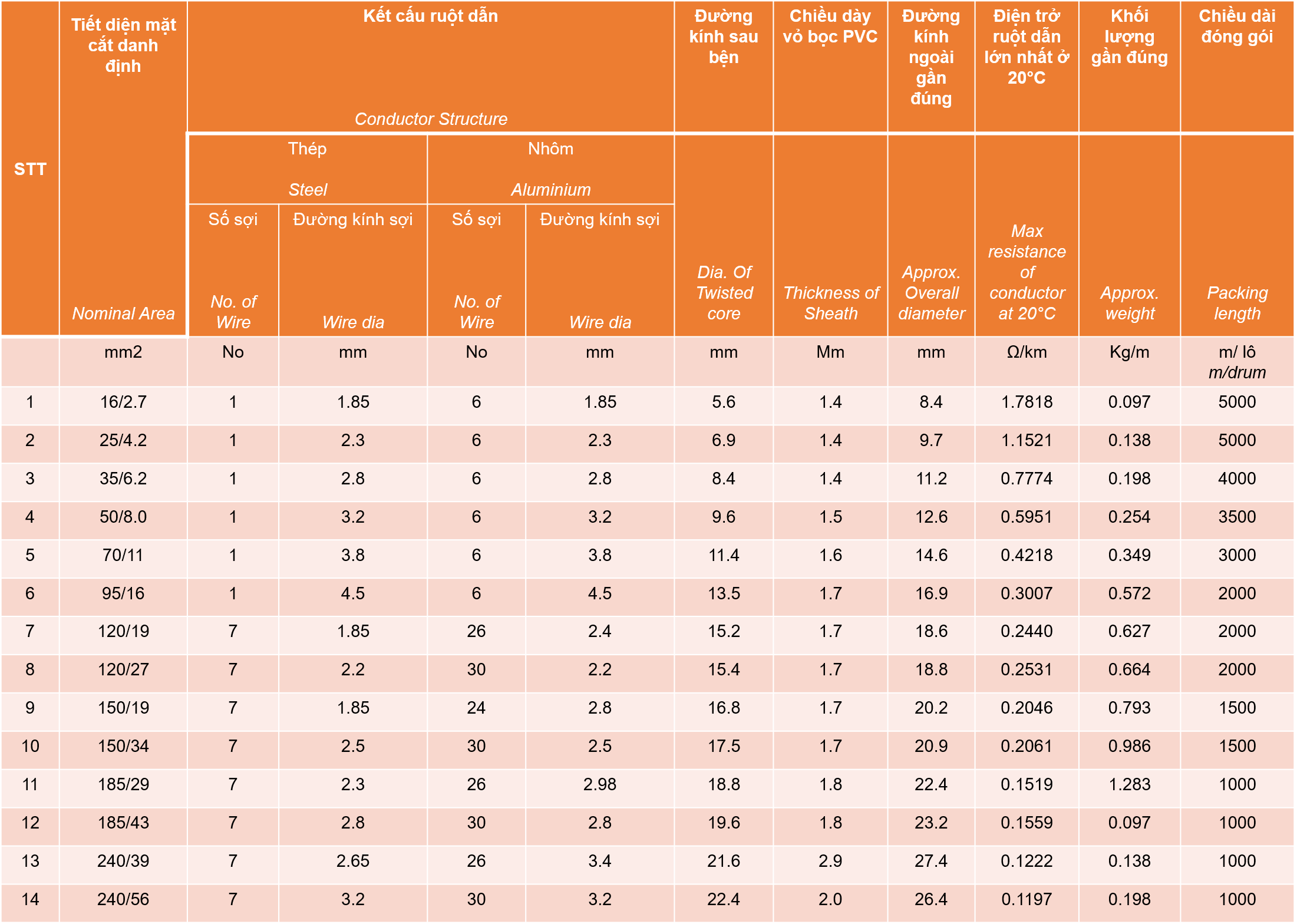

1-core steel-cored aluminum cable SUNWON-450/750V-AS/PVC or XLPE has a conductor core of electro-technical aluminum strand combined with a concentric twisted round steel wire (grade 2 conductor), nominal cross-sectional area definition includes (mm2): 16/2.7, 25/4.2, 35/6.2, 50/8.0, 70/11, 95/16, 120/19, 120/27, 150/19, 150/34, 185/29 , 185/43, 240/39, 240/56.
