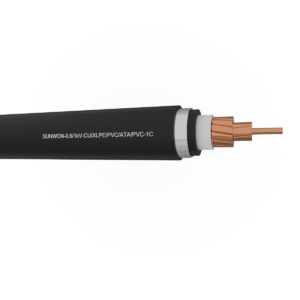

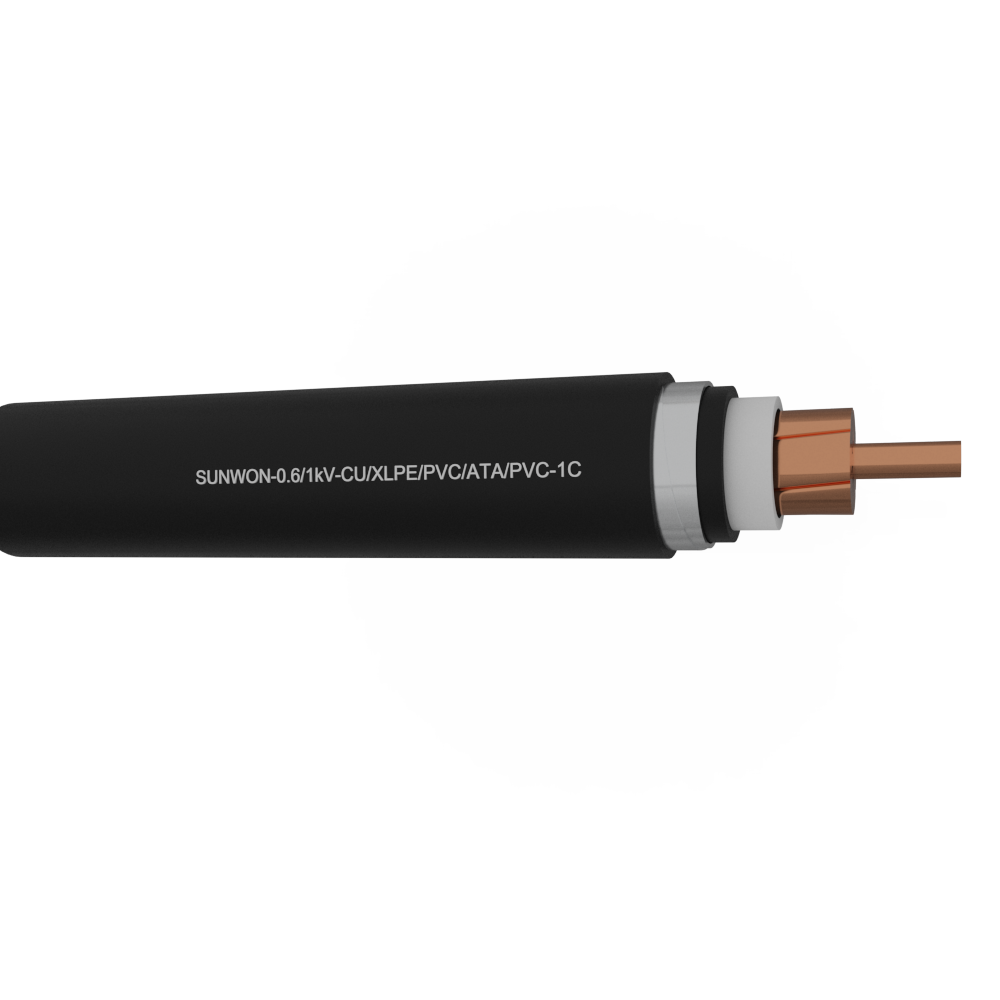

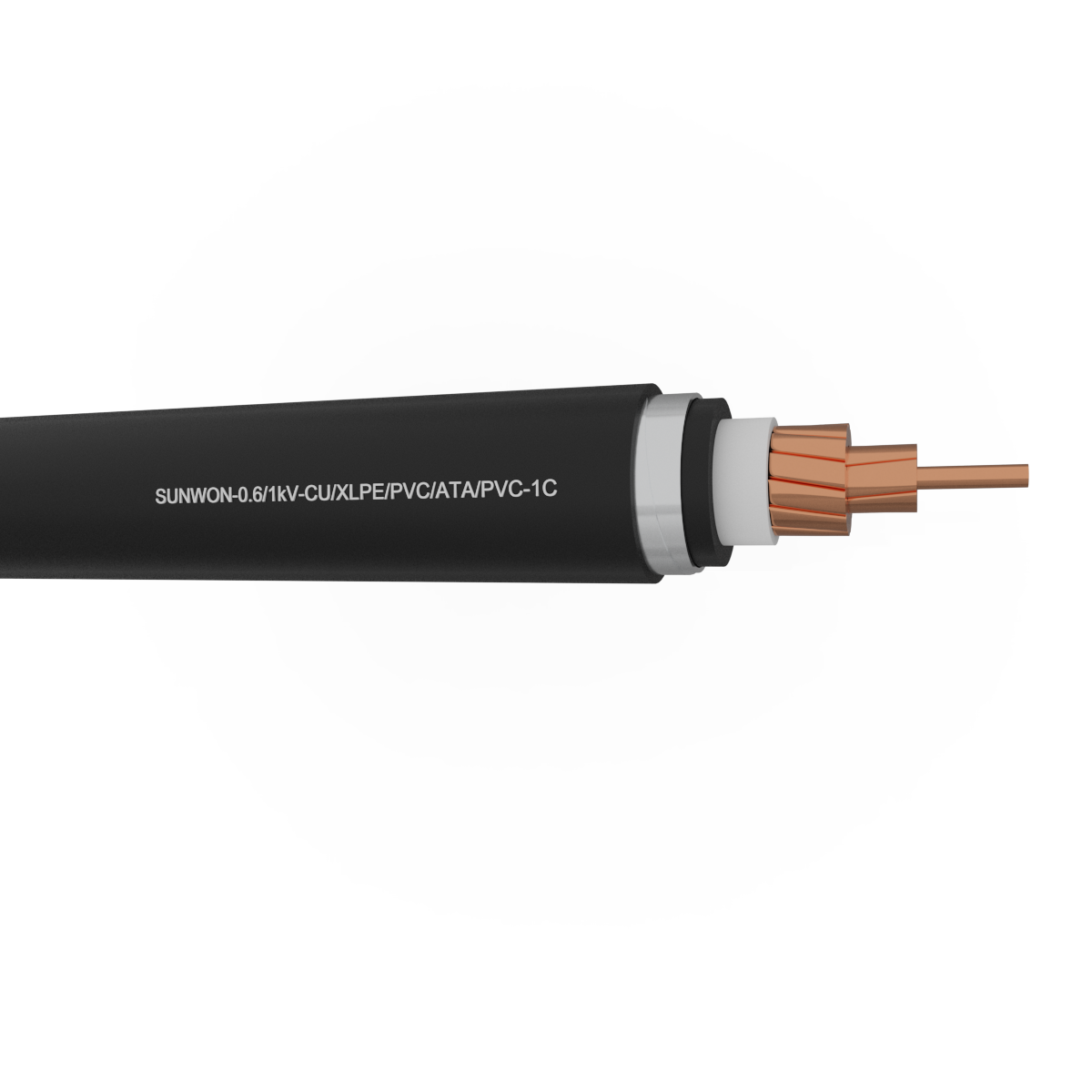

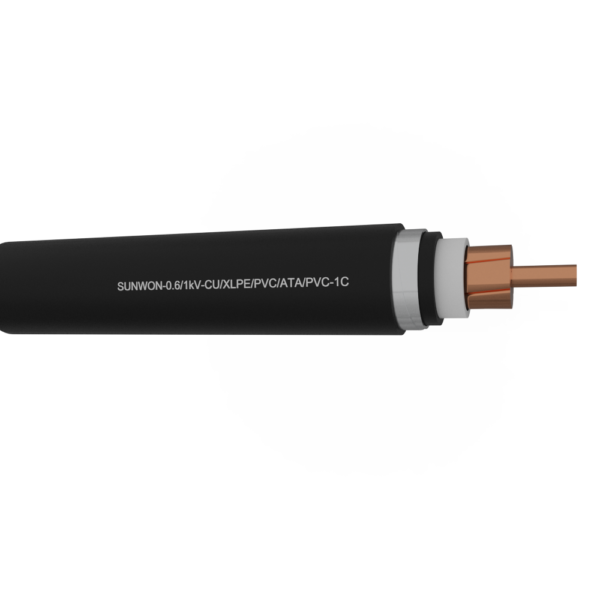

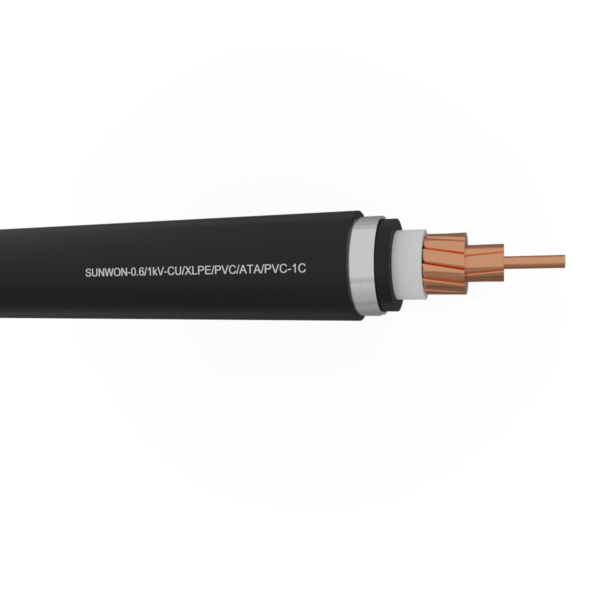

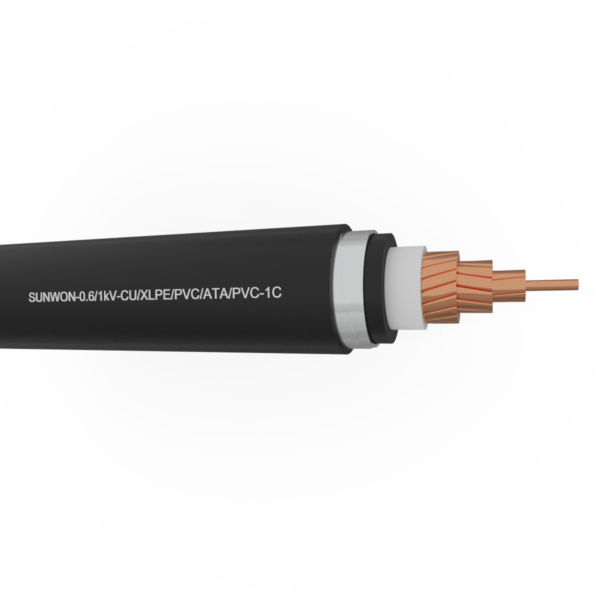

Muyler 1-core copper cable SUNWON-0.6/1kV-CXAV 1x

1. Applicable standards : TCVN 5935-1: 2013 ;

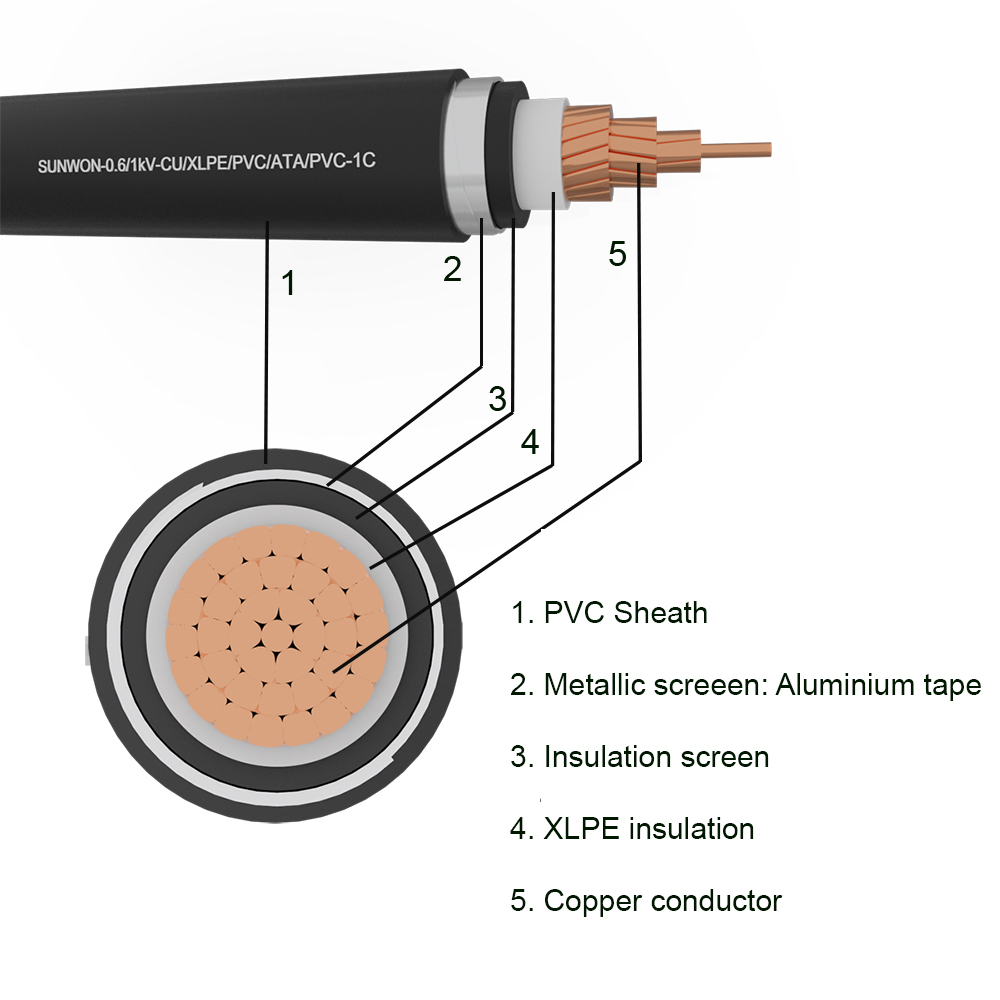

2. Product structure:

  • The conductive core consists of many concentrically twisted and twisted technical copper wires (can be pressed tightly);
  • White XLPE insulation;
  • Metal armor: aluminum tape;
  • Black PVC protective sheath.

3. Rated voltage (Uo/U) : 0.6/1kV.

4. Maximum conductor temperature : 90 degrees Celsius.

5. Nominal cross-section : From 1.5mm2 to 120mm2.

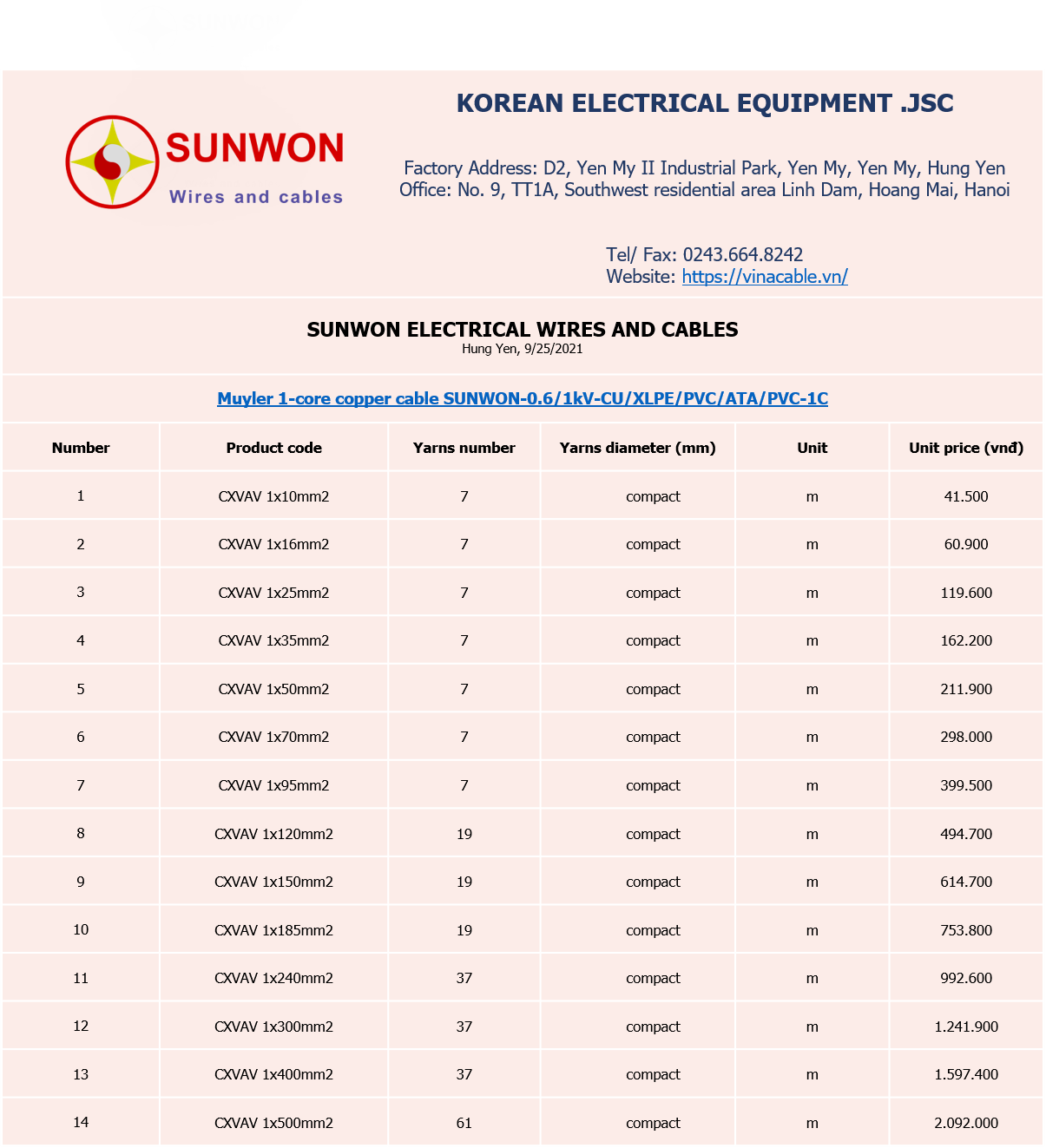

Download quote
