5-cores sheathed copper cable SUNWON-0.6/1kV-CU/XLPE/PVC-4x+1x

5-cores sheathed copper cable SUNWON-0.6/1kV-CU/XLPE/PVC-4x+1x structure

5-cores copper cable SUNWON-0.6/1kV-CXV 4x+1x

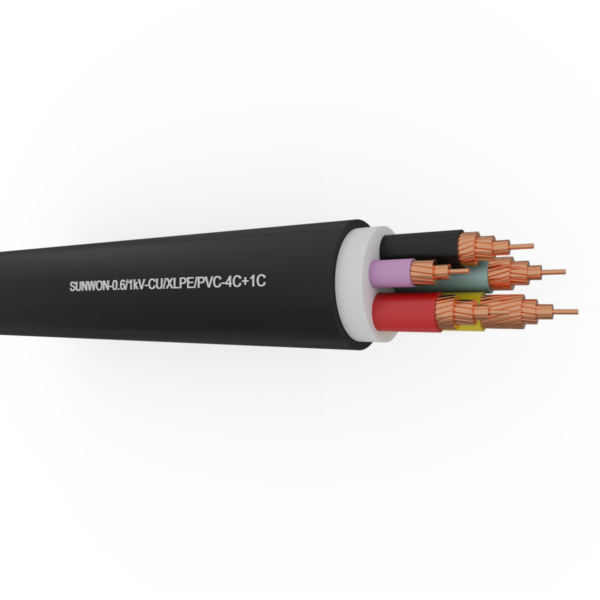

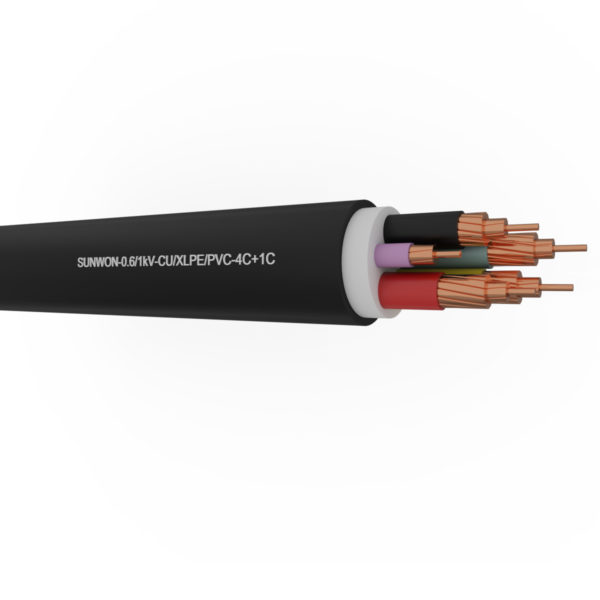

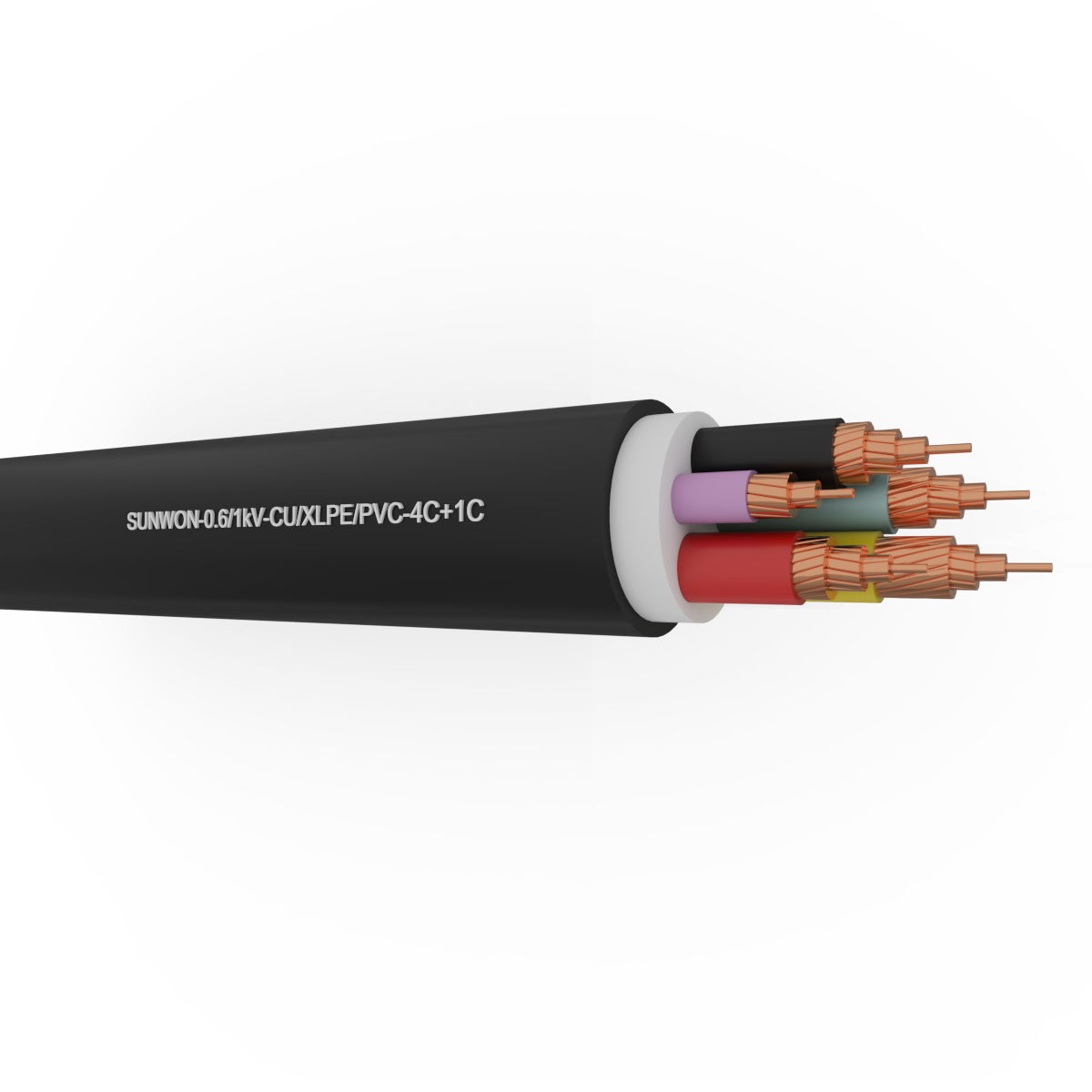

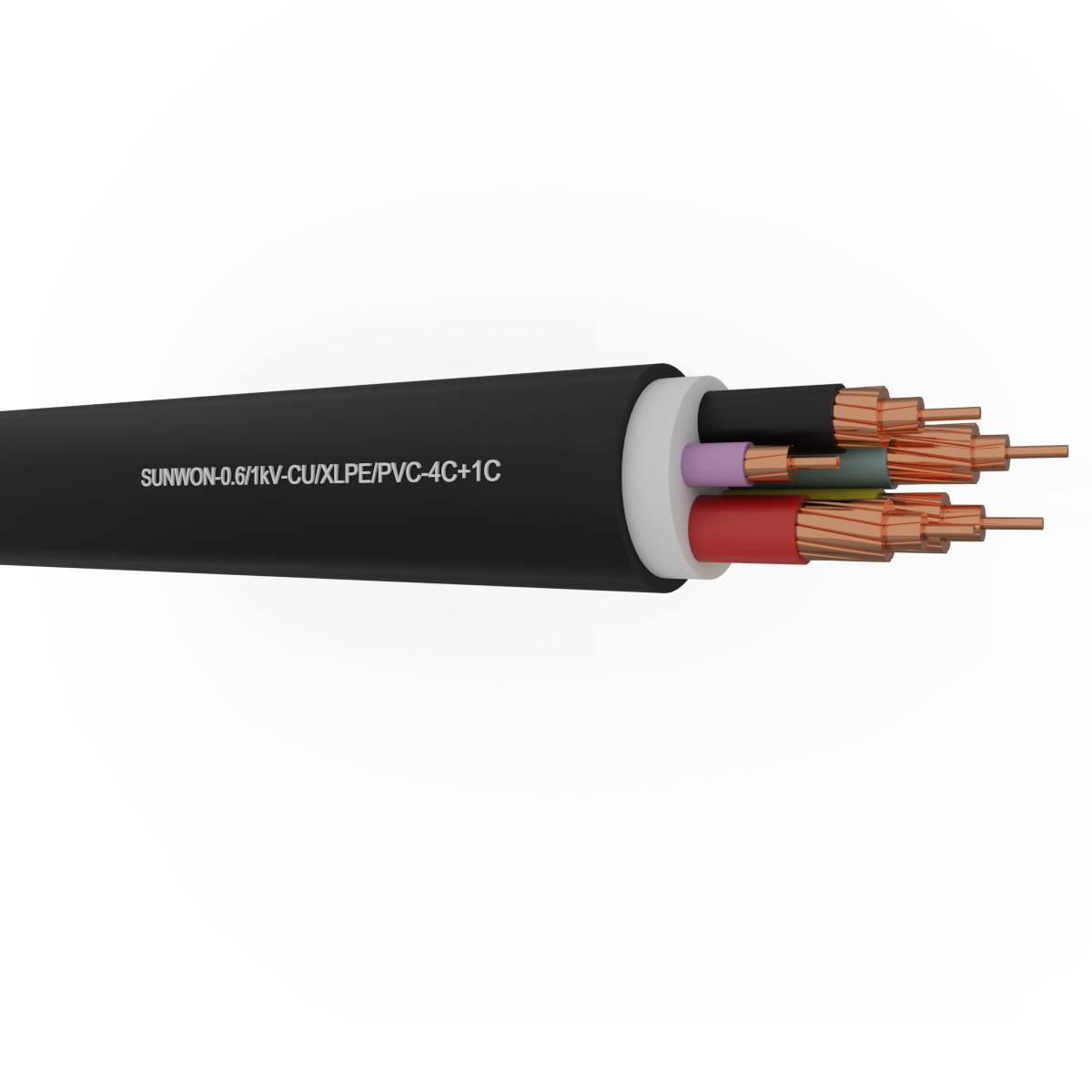

Low voltage copper cable with 5 cores with neutral conductor is used to transmit voltage up to 0.6/1kV. The cable consists of 5 pure copper conductors, including 1 smaller neutral core. Core is covered with XLPE insulation.

1. Applicable standards : TCVN 5935-1: 2013 ;

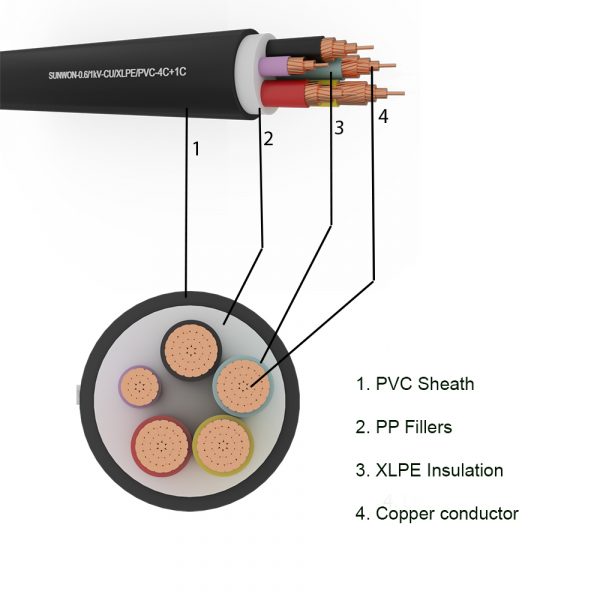

2. Product structure:

Conductive core is twisted concentrically from many hard copper wires, forming many layers (can be pressed tightly);
XLPE insulation has a phased color scheme;
Fillers, tapes made of PP, PET, PVC;
Black PVC sheath.

3. Nominal voltage (Uo/U) : 0.6/1kV.

4. Maximum conductor temperature : 90 degrees Celsius.

5. Nominal cross-section : From 11mm2 to 240mm2.

Download quote

Category: Low Voltage Cables

…

The product of SUNWON-0.6/1kV-CU/XLPE/PVC-4C+1C neutral conductor 5-cores copper cable is manufactured according to the standards specified in TCVN 5935-1:2013, product specification requirements are as follows:

Nominal voltage 0.6/1 (1.2) kV;
Insulating compound:
- PVC thermoplastic;
- Cross-linked insulating compound: Ethylene propylene rubber or the like (EPR), molecular rubber or high hardness ethylene propylene rubber (HEPR), Cross-linked polyethylene (XLPE).
The maximum conductor temperature in normal operation is 70 degrees C (if PVC insulation) and 90 degrees C (if XLPE insulation).
Conductors: Must be class 1 (1 solid conductor) or class 2 (braided conductor) (according to IEC 60228:2004) of annealed copper/coated with aluminum or aluminum alloy;
Regulations on the minimum thickness of each insulating compound on each product classified according to the following nominal cross-sections: 1.5 and 2.5mm2, 4 and 6mm2, 10 and 16mm2, 25 and 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2…

SUNWON-0.6/1kV-CU/XLPE/PVC-4C+1C 5-cores copper cable is classified according to the nominal cross-sectional area as follows: CXV 4×2.5+1×1.5mm2 , CXV 4×4+1× 2.5mm2 , CXV 4×6+1x4mm2 , CXV 4×10+1x6mm2 , CXV 4×16+1x10mm2, CXV 4×25+1x16mm2 , CXV 4×35+1x16mm2 , CXV 4×50+1x25mm2 CXV 4×70+1x35mm2 , CXV 4×95+1x50mm2 , CXV 4×120+1x70mm2 , CXV 4×150+1x95mm2 , CXV 4×185+1x120mm2 , CXV 4×240+1x150mm2…
