5-cores sheathed aluminum cable SUNWON-0.6/1kV-AL/XLPE/PVC-3x+2x

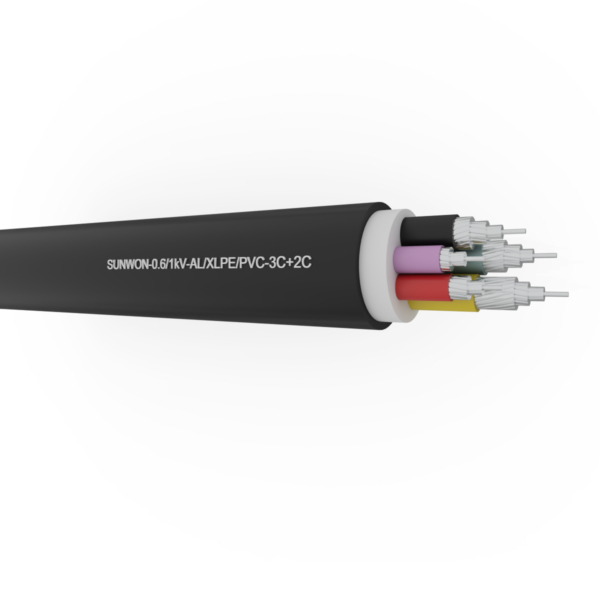

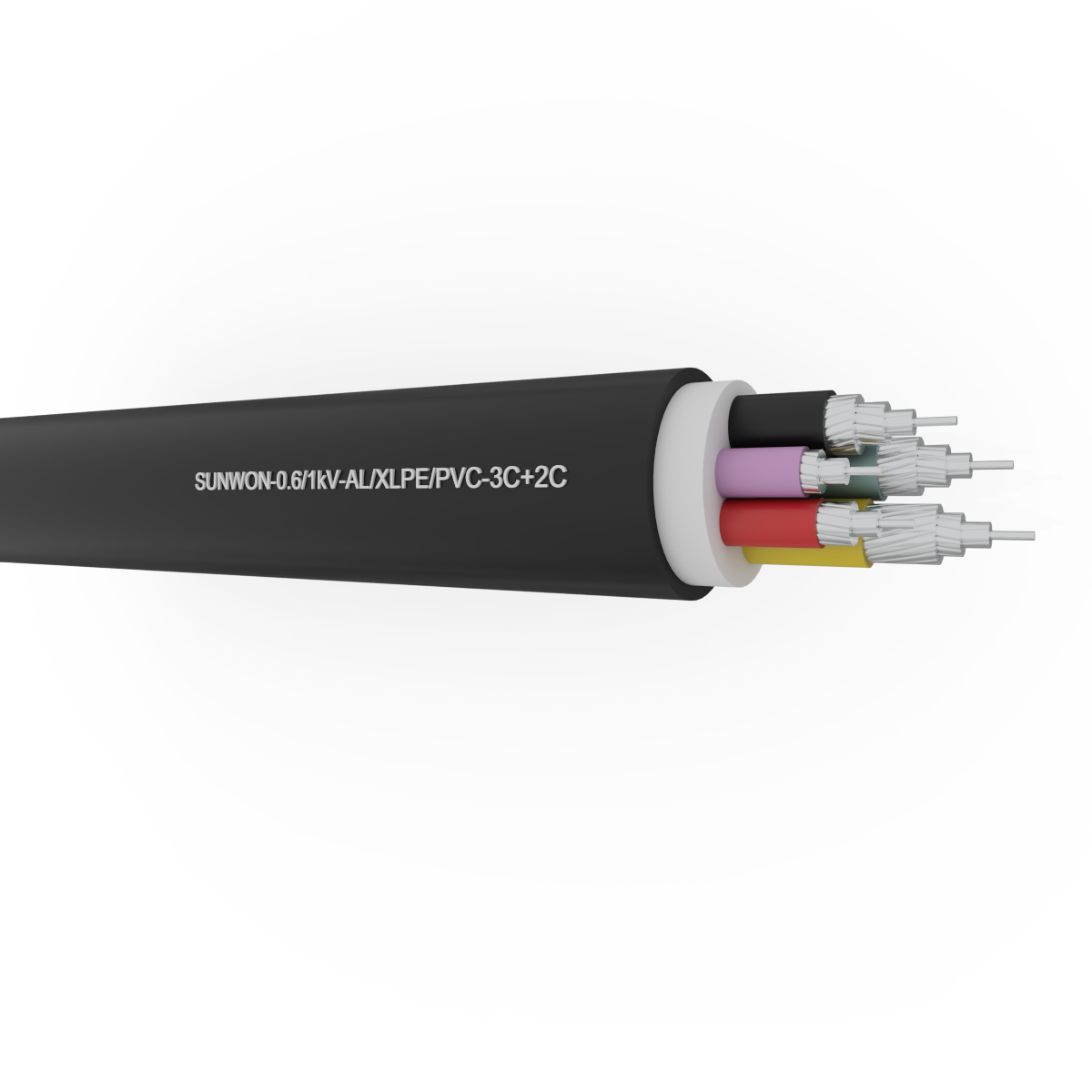

5-cores sheathed aluminum cable SUNWON-0.6/1kV-AL/XLPE/PVC-3x+2x structure

5-cores aluminum cable SUNWON-0.6/1kV-AXV 3x+2x

Low voltage aluminum power cable with 5 cores neutral conductor is used to transmit voltage up to 0.6/1kV. The cable consists of 5 pure aluminum conductors, including 2 smaller neutral cores. Core is covered with XLPE insulation.

1. Applicable standards : TCVN 5935-1: 2013 ;

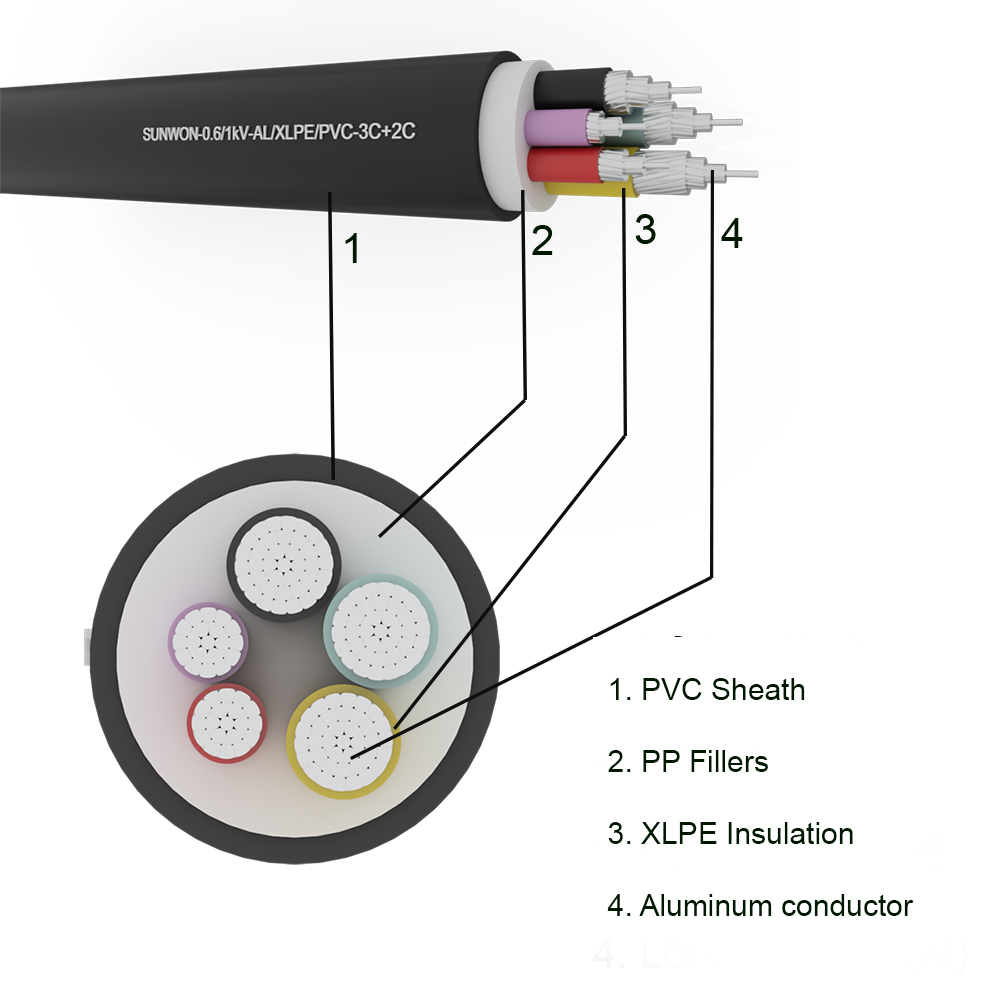

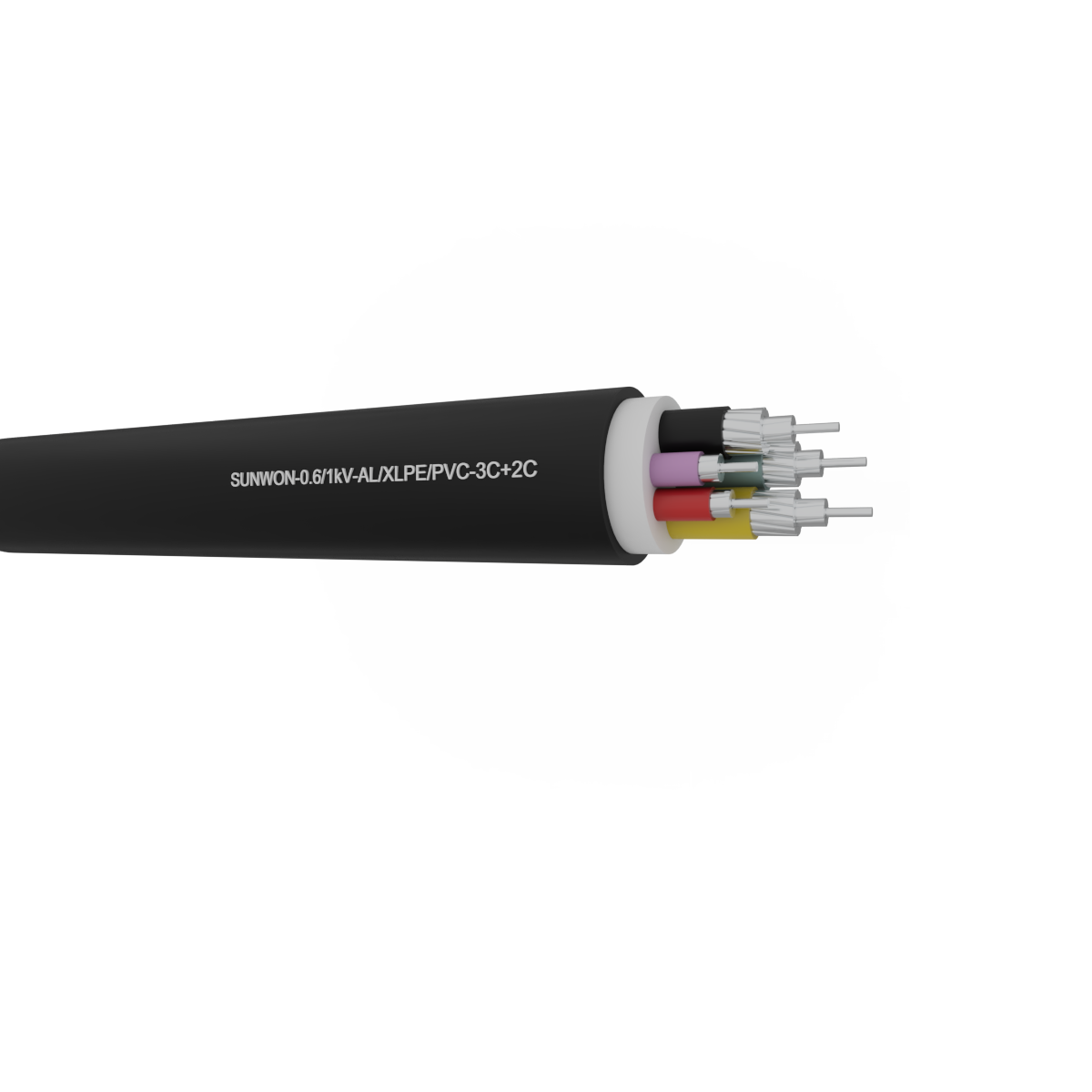

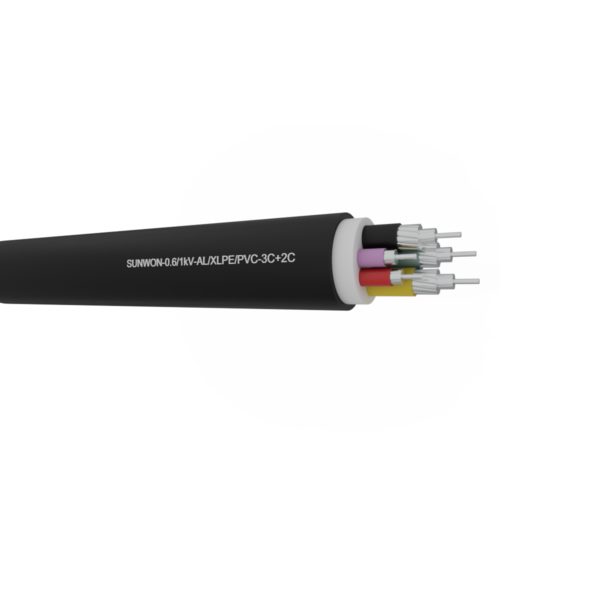

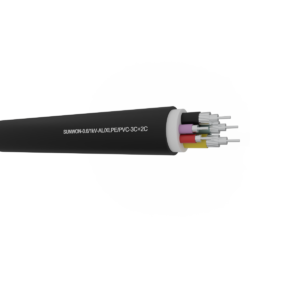

2. Product structure:

Conductive core is concentrically twisted and braided from many rigid aluminum strands, forming many layers (can be pressed tightly);
XLPE insulation has a phased color scheme;
Fillers, tapes made of PP, PET, PVC;
Black PVC sheath.

3. Nominal voltage (Uo/U) : 0.6/1kV.

4. Maximum conductor temperature : 90 degrees Celsius.

5. Nominal cross-section : From 11mm2 to 240mm2.

Category: Low Voltage Cables

…

SUNWON-0.6/1kV-AL/XLPE/PVC-3x+2x Aluminum 5-cores neutral cable is manufactured according to the standards specified in TCVN 5935-1:2013, product specification requirements are as follows:

Nominal voltage 0.6/1 (1.2) kV;
Insulating compound:
- PVC thermoplastic;
- Cross-linked insulating compound: Ethylene propylene rubber or the like (EPR), molecular rubber or high hardness ethylene propylene rubber (HEPR), Cross-linked polyethylene (XLPE).
The maximum conductor temperature in normal operation is 70 degrees C (if PVC insulation) and 90 degrees C (if XLPE insulation).
Conductors: Must be class 1 (1 solid conductor) or class 2 (braided conductor) (according to IEC 60228:2004) of annealed copper/coated with aluminum or aluminum alloy;
Regulations on the minimum thickness of each insulating compound on each product classified according to the following nominal cross-sections: 1.5 and 2.5mm2, 4 and 6mm2, 10 and 16mm2, 25 and 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2…

SUNWON-0.6/1kV-AL/XLPE/PVC-3C+2C 5-cores aluminum cable is classified according to the nominal cross-sectional area as follows: AXV 3×2.5+2×1.5mm2 , AXV 3×4+2× 2.5mm2 , AXV 3×6+2x4mm2 , AXV 3×10+2x6mm2 , AXV 3×16+2x10mm2 , AXV 3×25+2x16mm2 , AXV 3×35+2x16mm2, AXV 3×35+2x25mm2, AXV 3×50+ 2x25mm2 , AXV 3×50+2x35mm2 , AXV 3×70+2x35mm2 , AXV 3×70+2x50mm2 , AXV 3×95+2x50mm2 , AXV 3×95+2x70mm2 , AXV 3×120+2x50mm2 , AXV 3×120+2x70mm2 , AXV 3×120+2x95mm2 , AXV 3×150+2x70mm2 , AXV 3×150+2x95mm2 , AXV 3×150+2x120mm2, AXV 3×185+2x95mm2 , AXV 3×185+2x120mm2 , AXV 3×185+2x150mm2 , AXV 3×240+2x120mm2 , AXV 3×240+2x150mm2.
