4-cores sheathed aluminum cable SUNWON-0.6/1kV-AL/XLPE/PVC-3x+1x

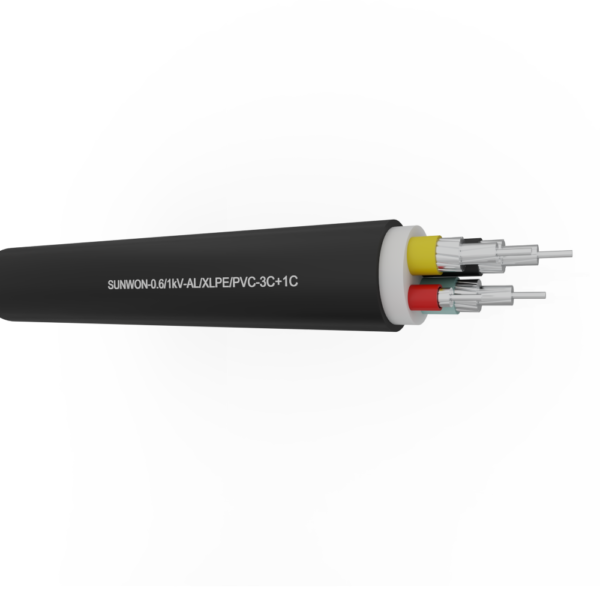

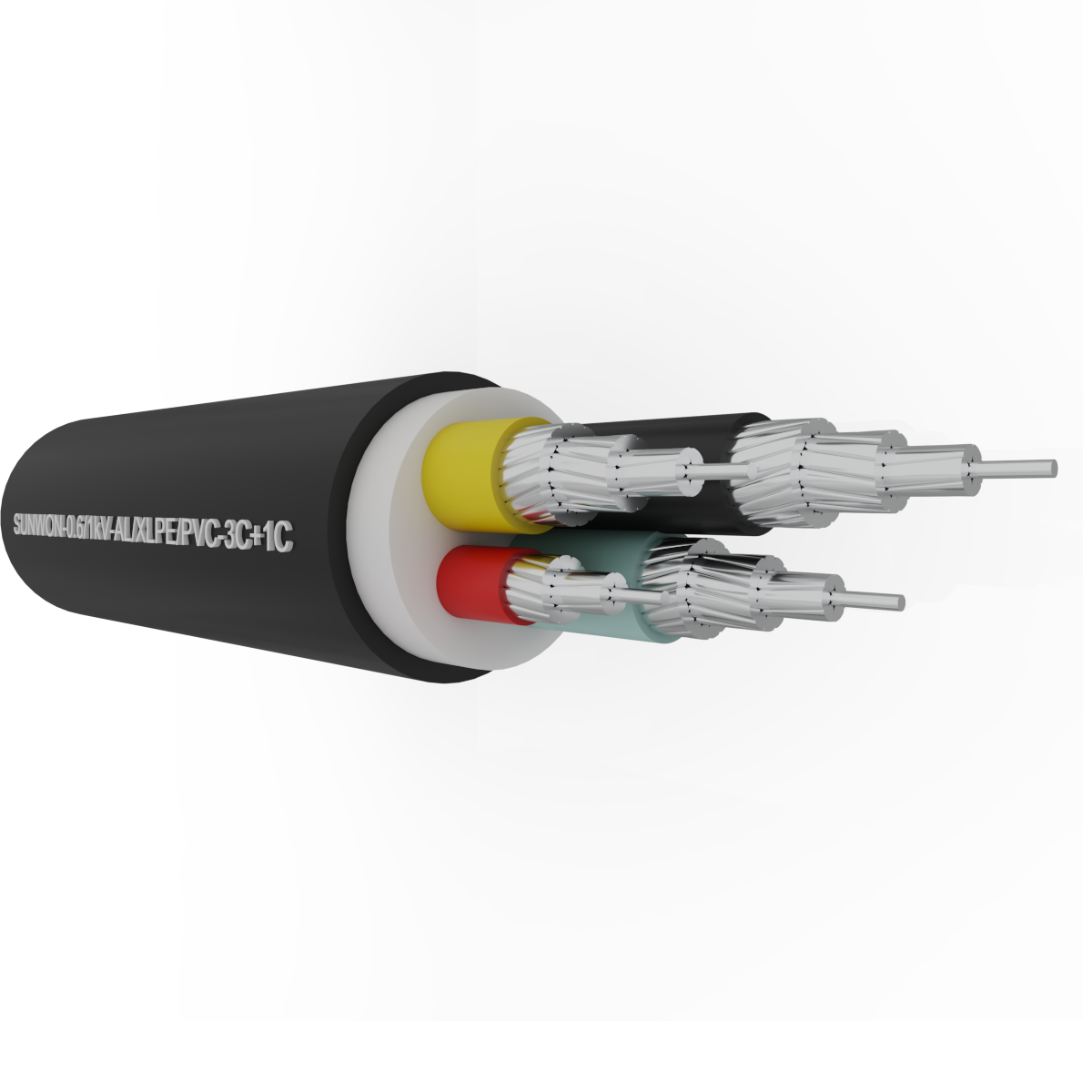

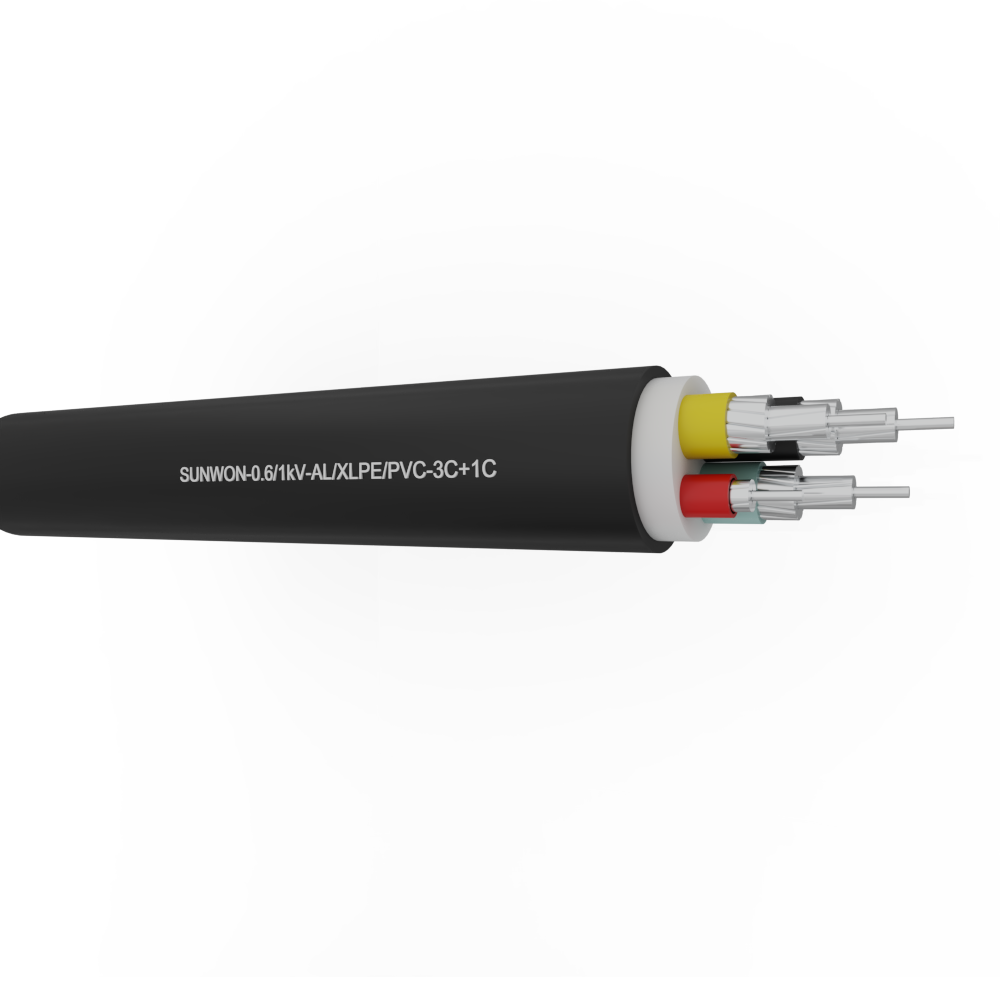

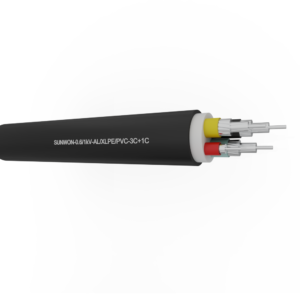

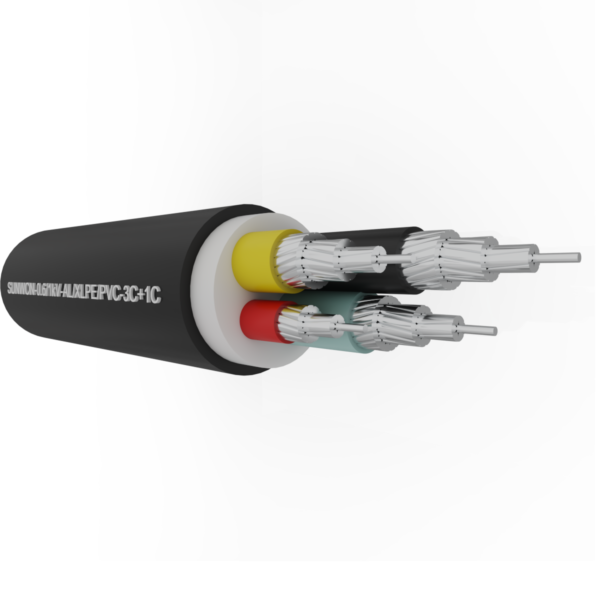

4-cores sheathed aluminum cable SUNWON-0.6/1kV-AL/XLPE/PVC-3x+1x structure

4-cores aluminum cable SUNWON-0.6/1kV-AXV 3x+1x

1. Applicable standards : TCVN 5935-1: 2013 ;

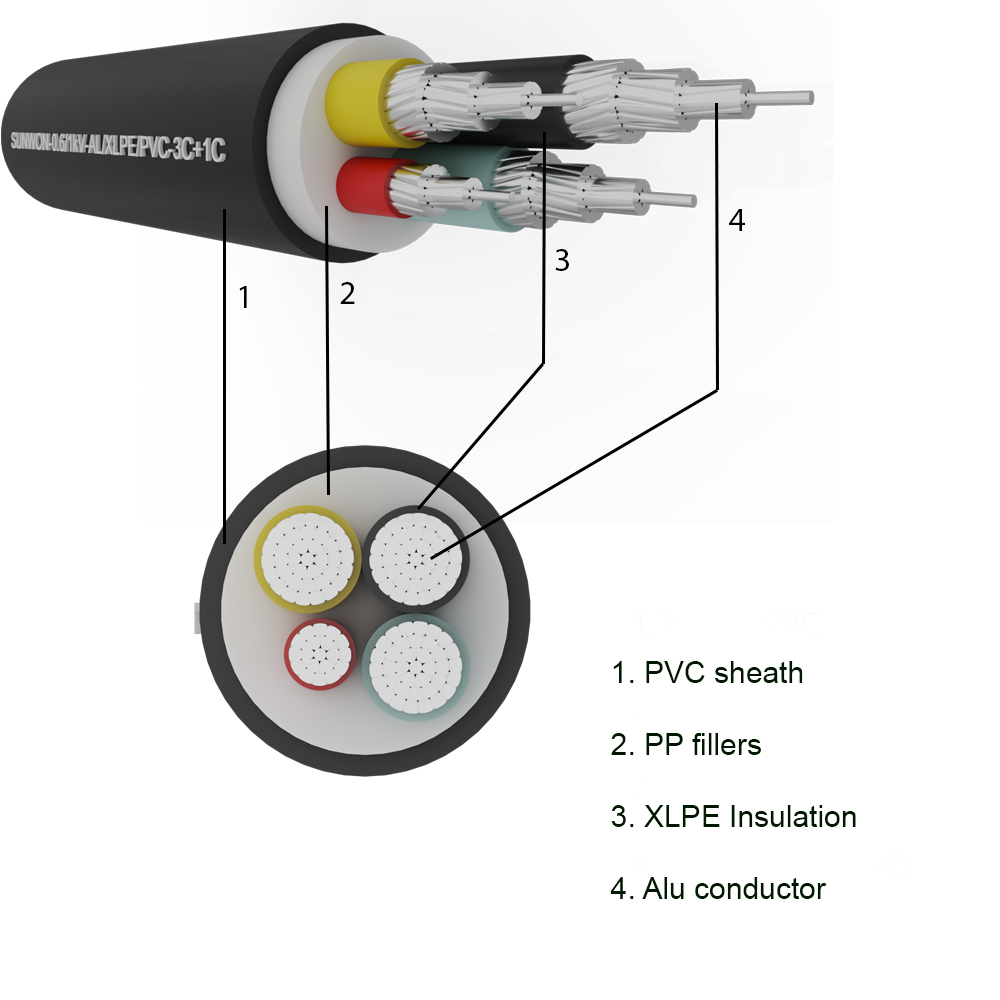

2. Product structure:

Conductive core is concentrically braided from many electrical engineering aluminum circular threads (can be pressed tightly);
XLPE insulation has a phased color scheme;
Fillers, tapes made of PP, PET, PVC;
Black PVC protective sheath.

3. Rated voltage (Uo/U) : 0.6/1kV.

4. Maximum conductor temperature : 90 degrees Celsius.

5. Nominal cross-section : From 10mm2 to 240mm2.

Download quote

Category: Low Voltage Cables

…

The optional 4-cores sheathed aluminum cable product SUNWON-0.6/1kV-AL/XLPE/PVC is specified in TCVN 5935-1:2013, product specification requirements are as follows:

Nominal voltage 0.6/1 (1.2) kV;
Insulating compound:
- PVC thermoplastic;
- Cross-linked insulating compound: Ethylene propylene rubber or the like (EPR), molecular rubber or high hardness ethylene propylene rubber (HEPR), Cross-linked polyethylene (XLPE).
The maximum conductor temperature in normal operation is 70 degrees C (if PVC insulation) and 90 degrees C (if XLPE insulation).
Conductors: Must be class 1 (1 solid conductor) or class 2 (braided conductor) (according to IEC 60228:2004) of annealed copper/coated with aluminum or aluminum alloy;
Regulations on the minimum thickness of each insulating compound on each product classified according to the following nominal cross-sections: 1.5 and 2.5mm2, 4 and 6mm2, 10 and 16mm2, 25 and 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2…

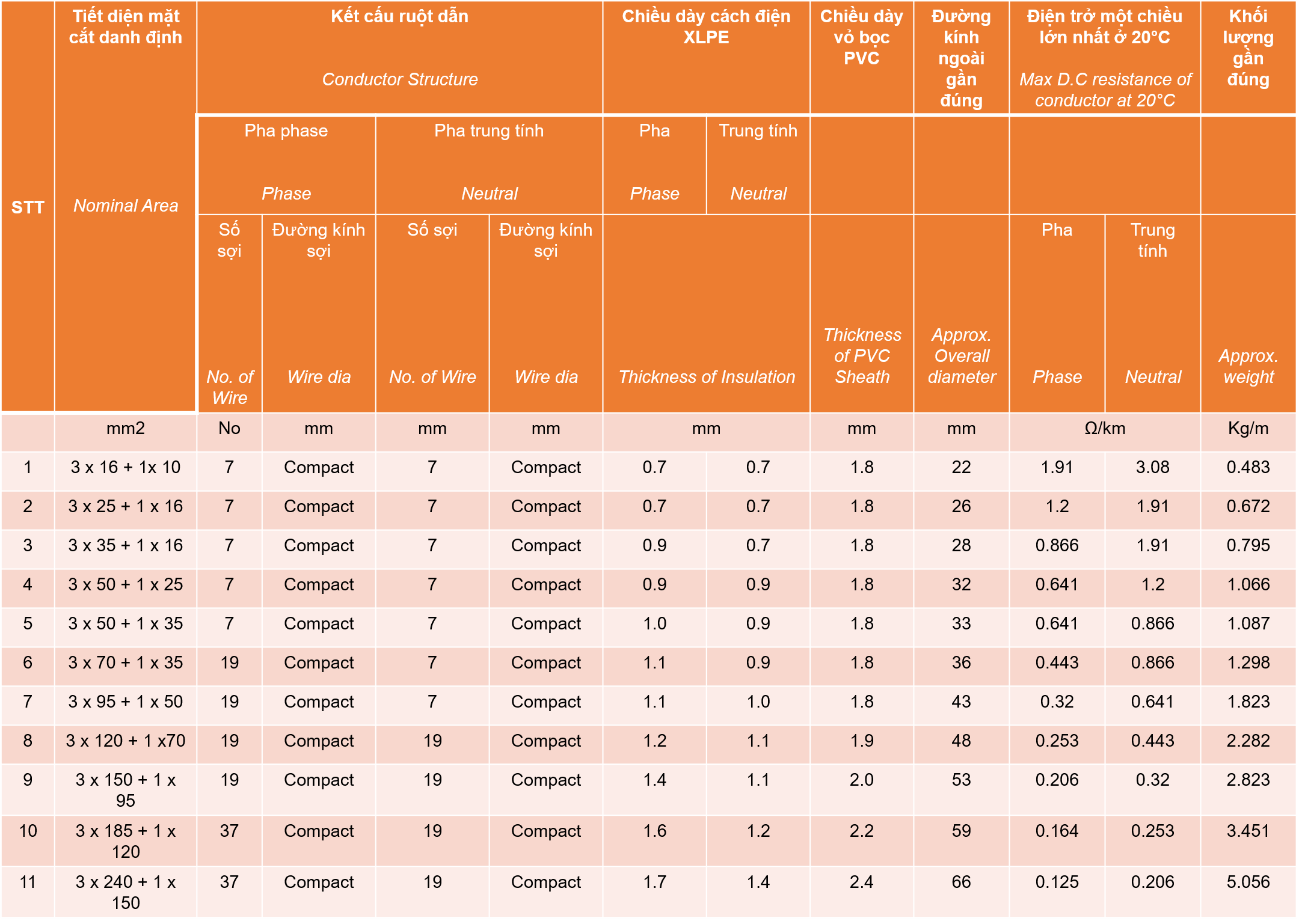

The optional 4-cores sheathed aluminum cable SUNWON-0.6/1kV-AL/XLPE/PVC is classified according to the following nominal cross-sectional areas: AXV 3×16+1×10, AXV 3×25+1×16, AXV 3×35+1×16, AXV 3×50+1×25, AXV 3×50+1×35, AXV 3×70+1×35, AXV 3×95+1×50, AXV 3×120+1 ×70, AXV 3×150+1×95, AXV 3×185+1×120, AXV 3×240+1×150…
