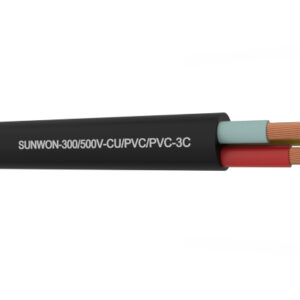

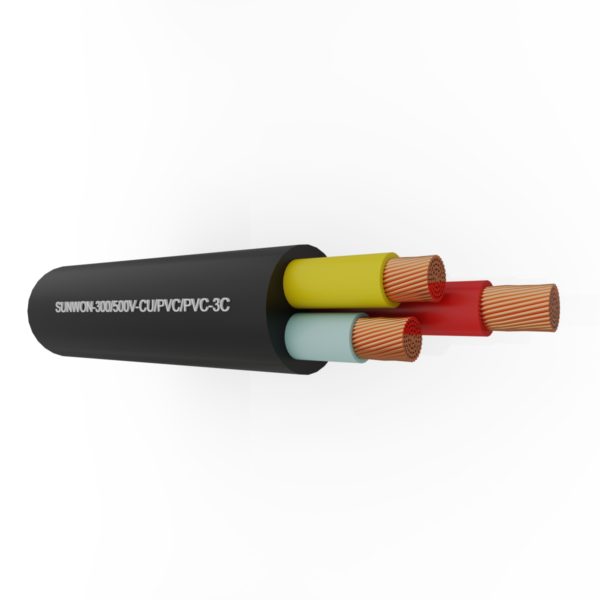

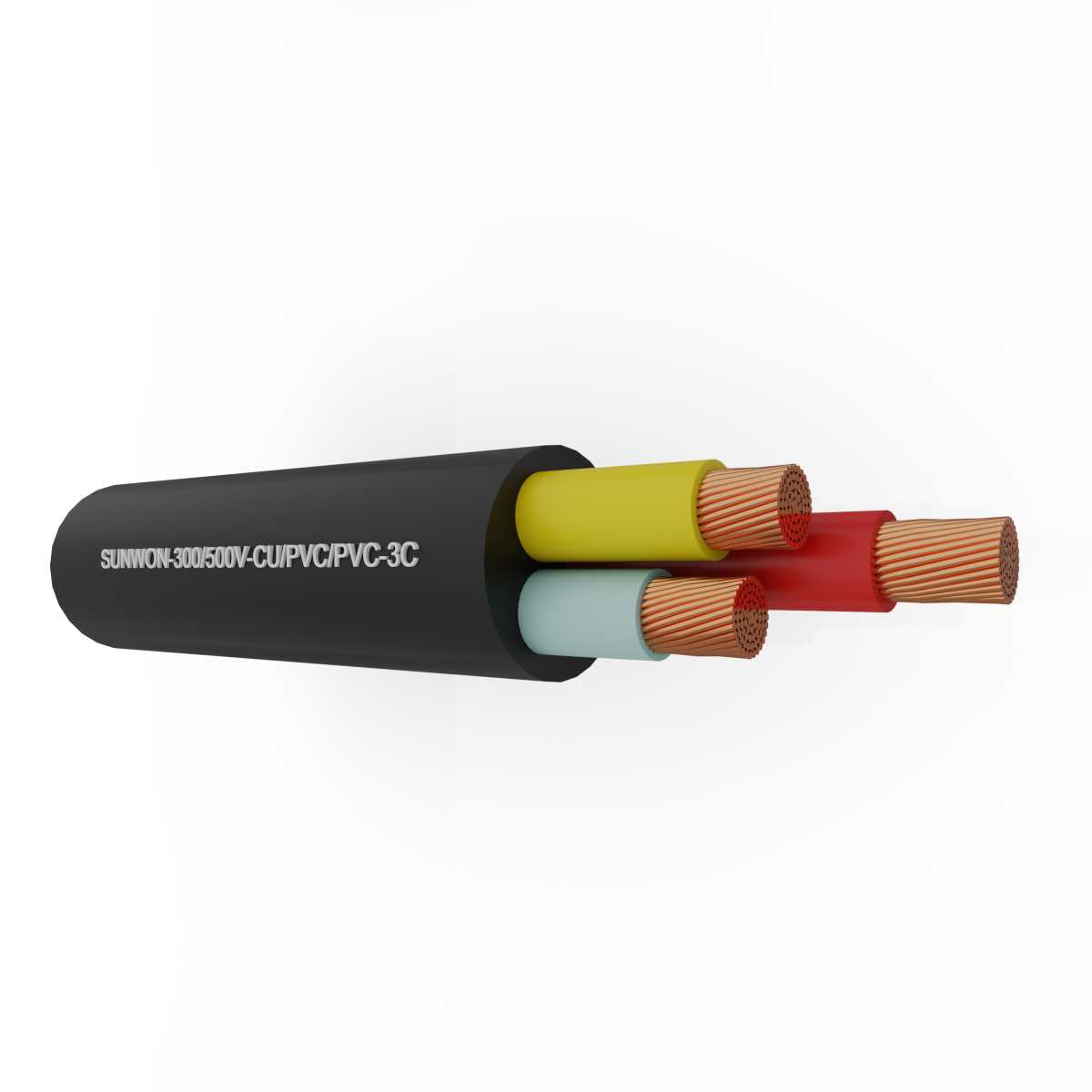

3-soft cores wire SUNWON-300/500V-CU/PVC/PVC

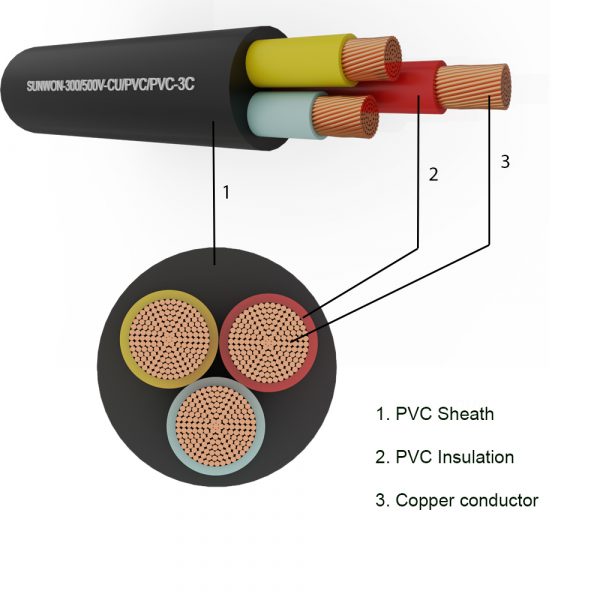

3-soft cores wire SUNWON-300/500V-CU/PVC/PVC structure

3-soft cores wire SUNWON-300/500V-CVV 3x

Single-core flexible wire, consisting of many soft copper wires, is used for low-voltage networks and civil electricity with working voltage up to 300/500V.

1. Applicable standards : TCVN 6610-5 ;

2. Product structure:

Conductor: Concentrically twisted and braided from many soft annealed copper wires;
PVC insulation;
Protective cover in gray PVC, or on request.

3. Rated voltage (Uo/U) : 300/500V

4. Maximum conductor temperature : 70 degrees Celsius

5. Nominal cross-sectional area : From 0.5mm2 to 10mm2.

Download quote

Category: Electrical Wires

…

Products of 3-soft cores wire SUNWON-300/500V-CU/PVC/PVC are specified according to TCVN 6610-5:2014, technical requirements for wire production are as follows:

Common PVC sheathed flexible wire (6610 TCVN 53 or 60227 IEC 53): Rated voltage 300/500V, number of conductors from 2 to 5 and class 5 conductors, average PVC or PVC/D insulation from 0.6mm; The average thickness of PVC or PVC/ST5 sheath is from 0.8mm.

3-soft cores wire SUNWON-300/500V-CU/PVC/PVC is classified based on the nominal cross-section of the conductor core, including: CV 3×0.5, CV 3×0.75, CV 3×1.0, CV 3×1.5, CV 3×2.5, CV 3×4.0, CV 3×6.0…
