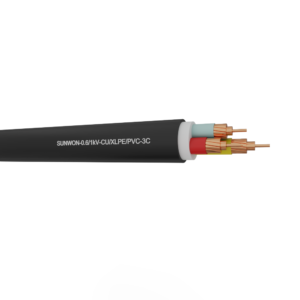

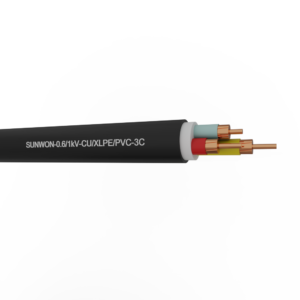

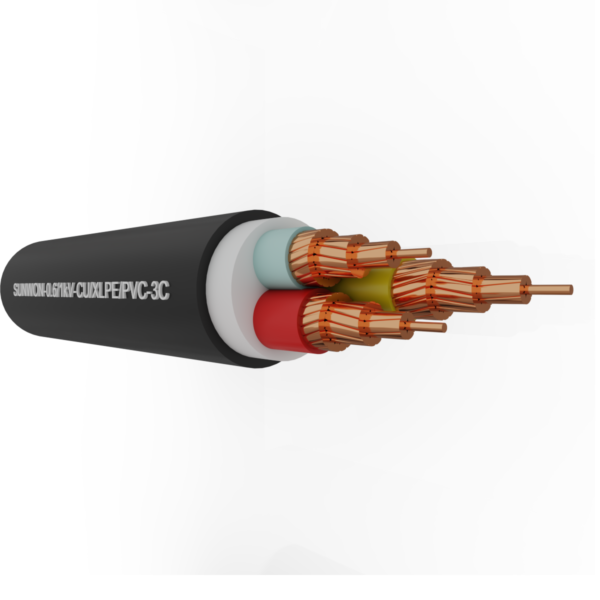

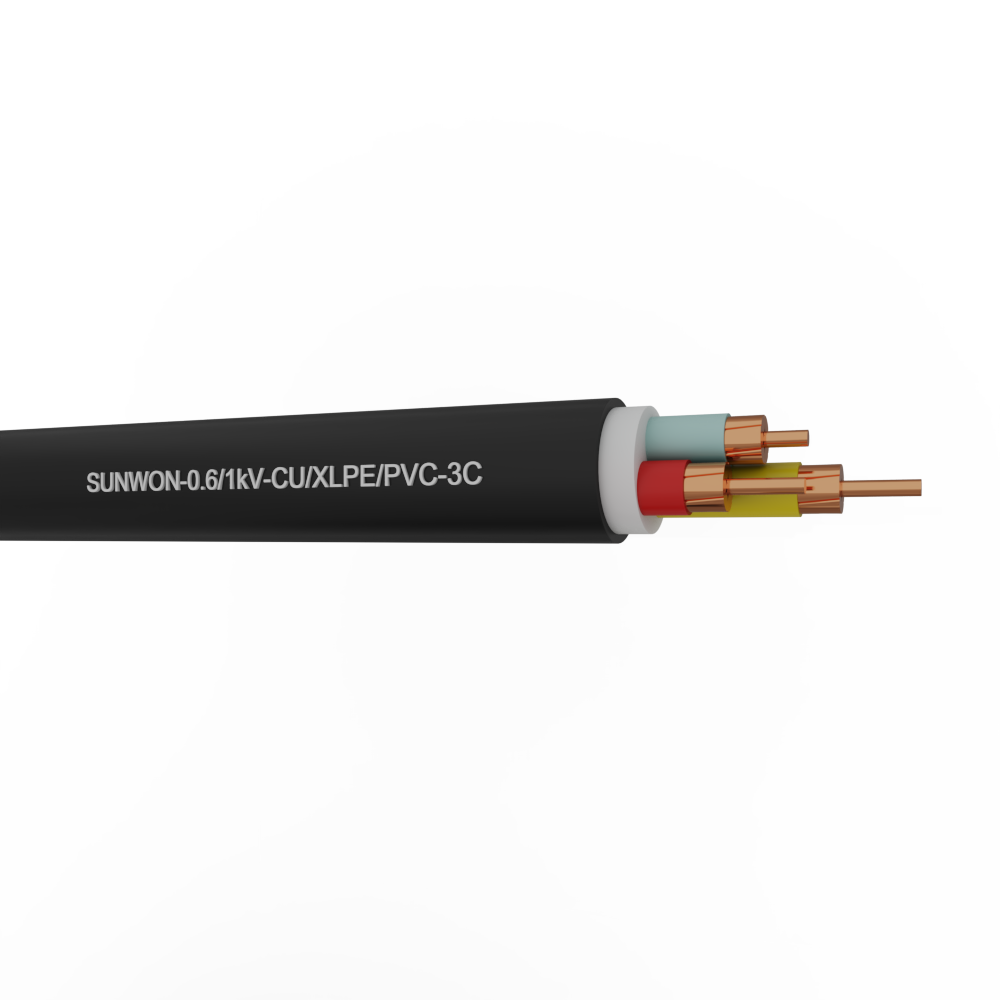

3-cores sheathed copper cable SUNWON-0.6/1kV-CU/XLPE/PVC-3C

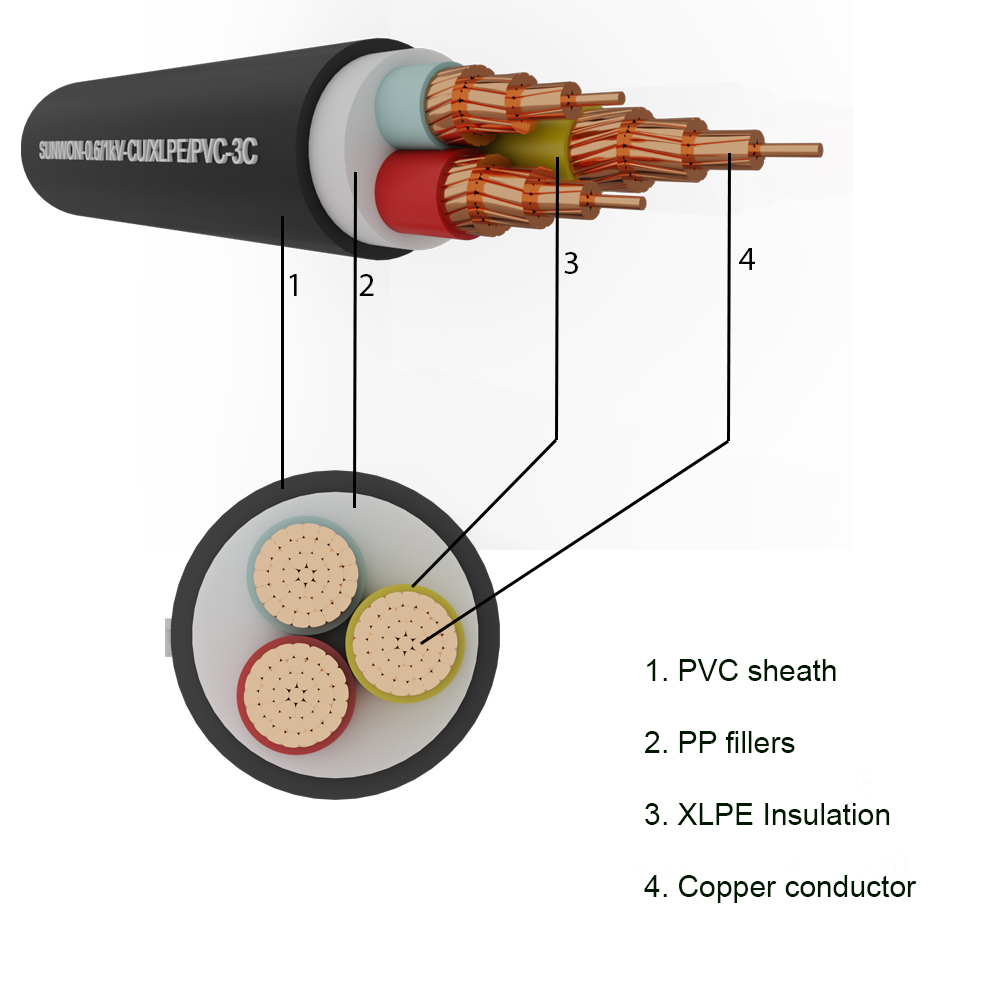

3-cores sheathed copper cable SUNWON-0.6/1kV-CU/XLPE/PVC-3C structure

3-cores copper cable SUNWON-0.6/1kV-CXV 3x

1. Applicable standards : TCVN 5935-1: 2013 ;

2. Product structure:

Conductive core is twisted and braided concentrically from many electrical engineering circular copper wires (can be pressed tightly);
XLPE insulation has a phased color scheme;
Fillers, tapes made of PP, PET, PVC;
Black PVC protective sheath.

3. Rated voltage (Uo/U) : 0.6/1kV.

4. Maximum conductor temperature : 90 degrees Celsius.

5. Nominal cross-section : From 1.5mm2 to 240mm2.

Download quote

Category: Low Voltage Cables

…

Products of SUNWON-0.6/1kV-CU/XLPE/PVC Sheathed Copper Cable are specified in TCVN 5935-1:2013, product specification requirements are as follows:

Nominal voltage 0.6/1 (1.2) kV;
Insulating compound:
1. PVC thermoplastic;
2. Cross-linked insulating compound: Ethylene propylene rubber or the like (EPR), molecular rubber or high hardness ethylene propylene rubber (HEPR), Cross-linked polyethylene (XLPE).
The maximum conductor temperature in normal operation is 70 degrees C (if PVC insulation) and 90 degrees C (if XLPE insulation).
Conductors: Must be class 1 (1 solid conductor) or class 2 (braided conductor) (according to IEC 60228:2004) of annealed copper/coated with aluminum or aluminum alloy;
Regulations on the minimum thickness of each insulating compound on each product classified according to the following nominal cross-sections: 1.5 and 2.5mm2, 4 and 6mm2, 10 and 16mm2, 25 and 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2…

SUNWON-0.6/1kV-CU/XLPE/PVC 3-cores sheathed copper cable is classified according to the nominal cross-sectional area as follows: CXV 3×1.5, CXV 3×2.5, CXV 3×4, CXV 3×6, CXV 3×10, CXV 3×16, CXV 3×25, CXV 3×35, CXV 3×50, CXV 3×70, CXV 3×95, CXV 3×120, CXV 3×150, CXV 3×185, CXV 3×240…
