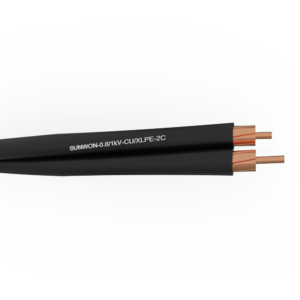

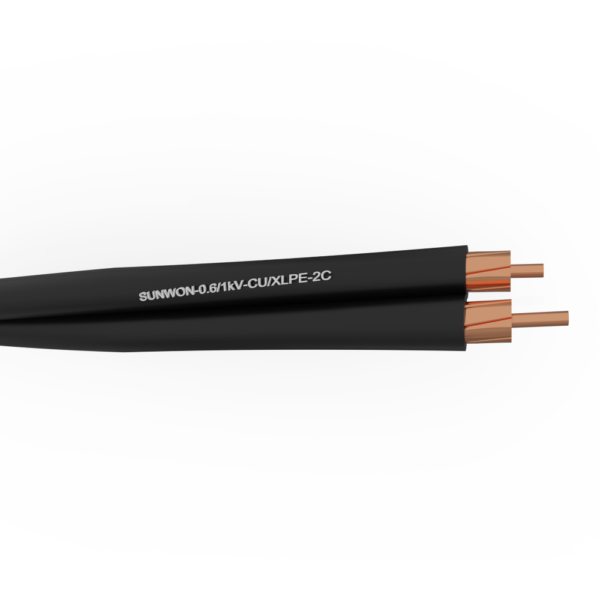

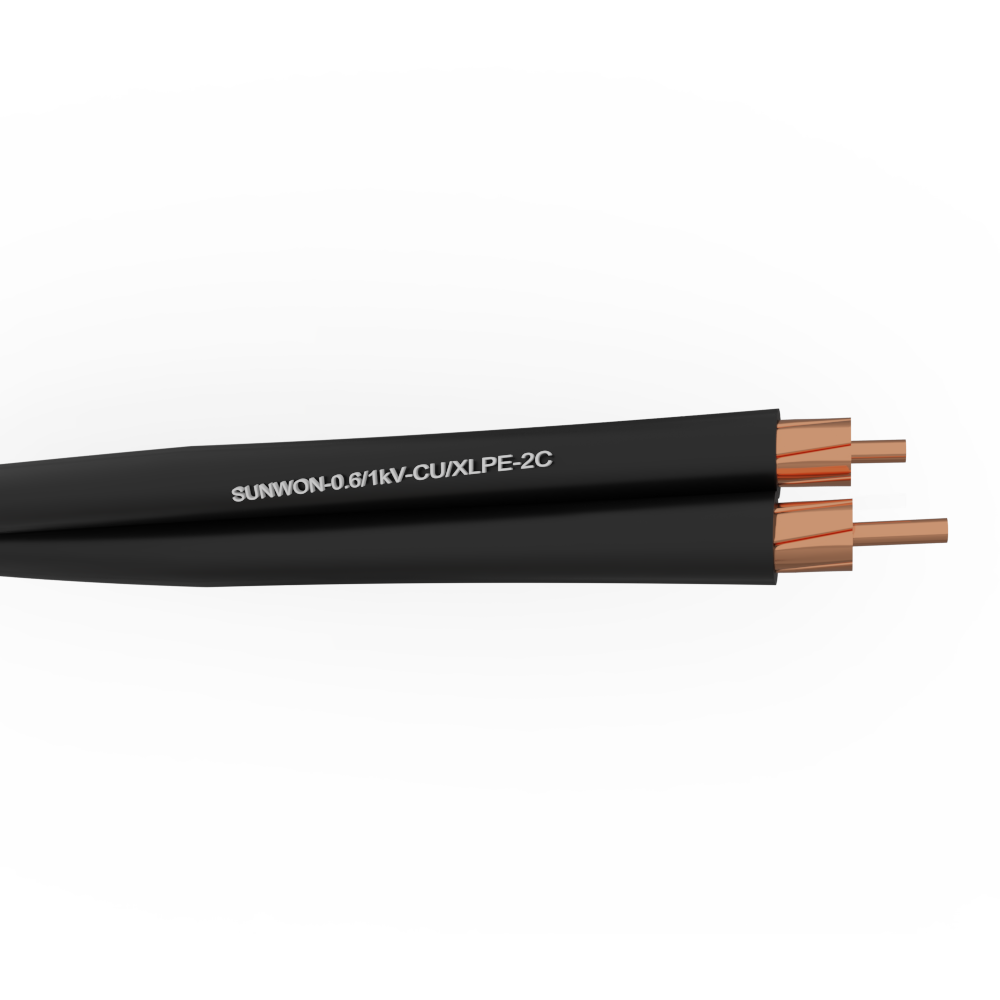

2 core twisted copper cable SUNWON-0.6/1kV-CU/XLPE-2C

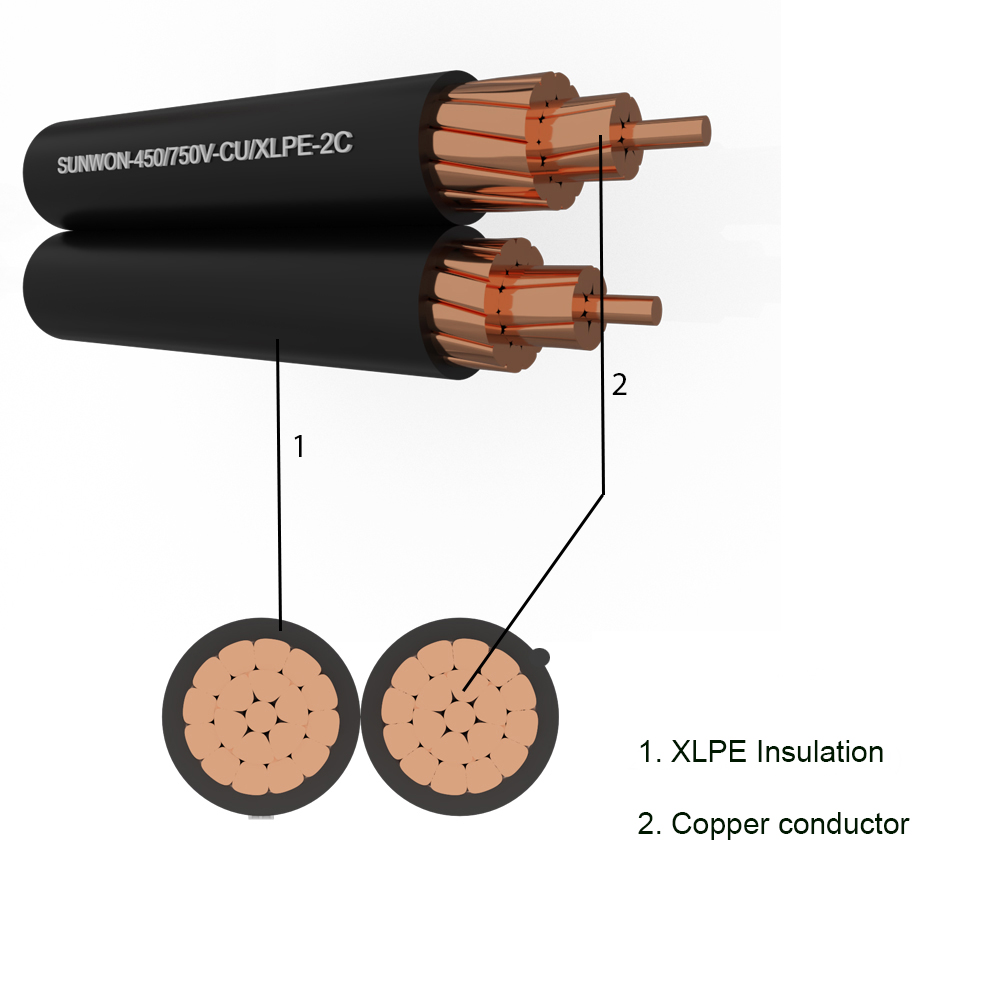

2 core twisted copper cable SUNWON-0.6/1kV-CU/XLPE-2C structure

2 core twisted copper cable SUNWON-0.6/1kV-ABC 2x

1. Applicable standards: TCVN 6447: 1998 ;

2. Product texture:

Conductor core: Consists of concentrically twisted and compacted circular copper wires;
Insulation: XLPE plastic;
Cable identification: Phase separation by the number of tendons or by the color of the line on the cable/.

3. Nominal cross-section: From 10m2 to 300m2

4. Maximum working temperature: 90 degrees Celsius.

Category: Twisted Electrical Cable

…

TCVN 6447: 1998 specifies structural standards of twisted-pair electric cables including: insulation by cross-linked polyethylene (XLPE); working voltage to 0.6/1 kV; with 2, 3 or 4 aluminum conductors, rated cross-section from 16 to 150 mm2. The successive layers of helix must be in opposite directions and the outermost helix must be in the right direction.

In addition to products according to the above standards, SUNWON has other twisted-pair cables such as copper core cables with 2 – 4 conductors or nominal cross-sections up to 185/240mm2. Copper conductors are also braided from electrically round copper wires and pressed in accordance with TCVN 5934: 1995.

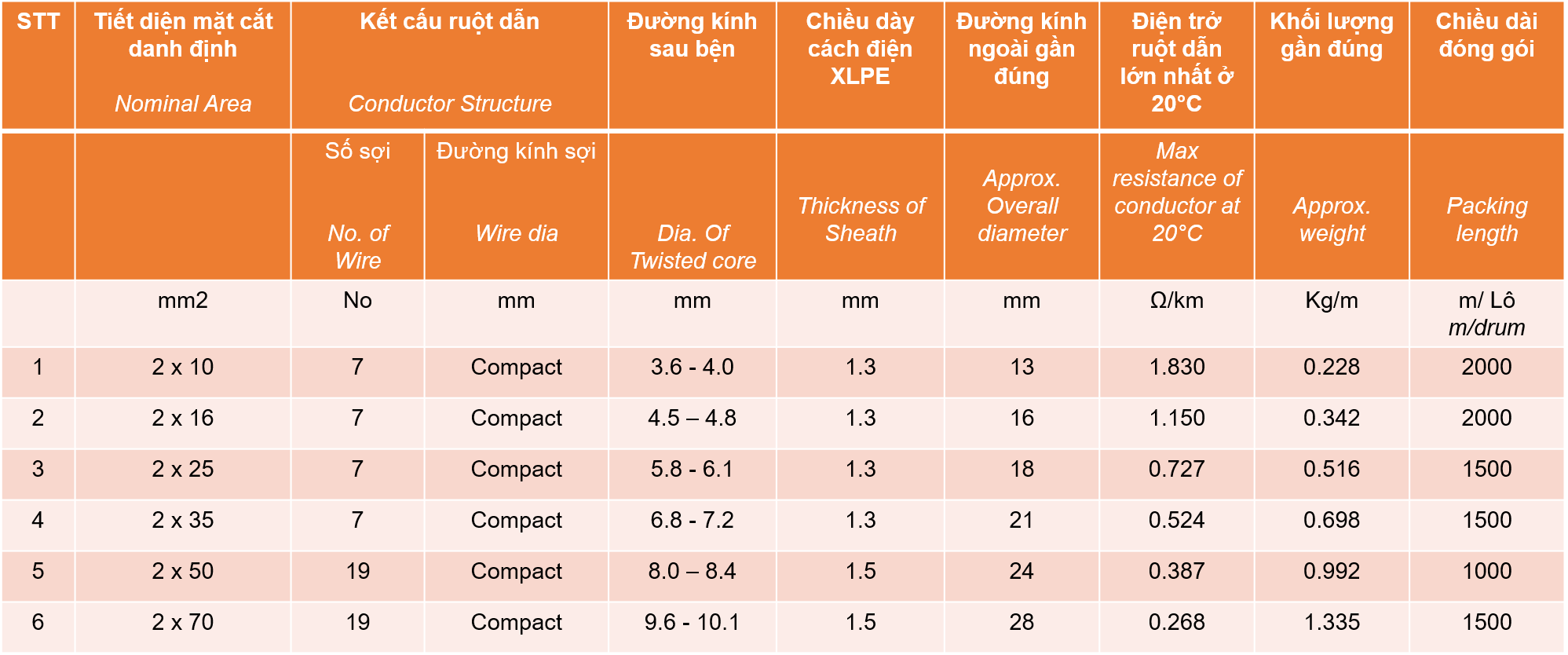

The SUNWON 2-core copper conductor twisted pair cable line includes products with the following nominal cross-sections:

CX 2 x 11mm2: 7 electrically pressed round copper wires;
CX 2 x 16mm2: 7 electrically pressed round copper wires;
CX 2 x 25mm2: 7 electrically pressed round copper wires;
CX 2 x 35mm2: 7 electrically laminated circular copper wires;
CX 2 x 50mm2: 7 electrically laminated circular copper wires;
CX 2 x 70mm2: 7 or 19 electrically laminated circular copper wires;

2-core twisted-pair cable is phased according to floating ribs on XLPE insulation, specifically, 2-core twisted-pair power cable includes 1 core without floating ribs and 1 core with 1 floating ribbed.
