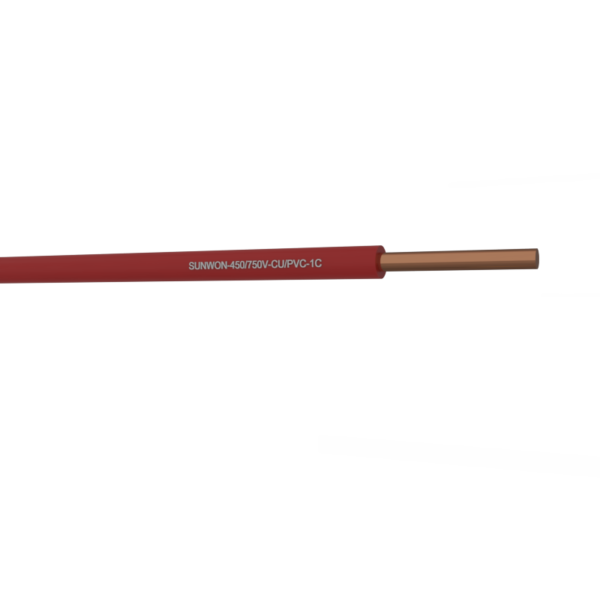

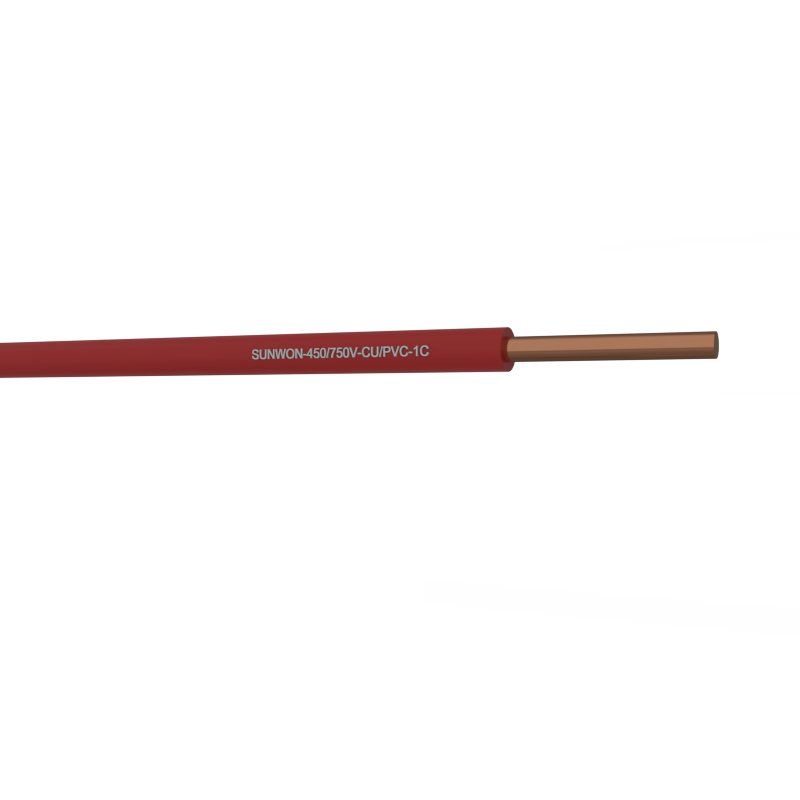

1-hard core wire SUNWON-450/750V-CU/PVC-1C 2

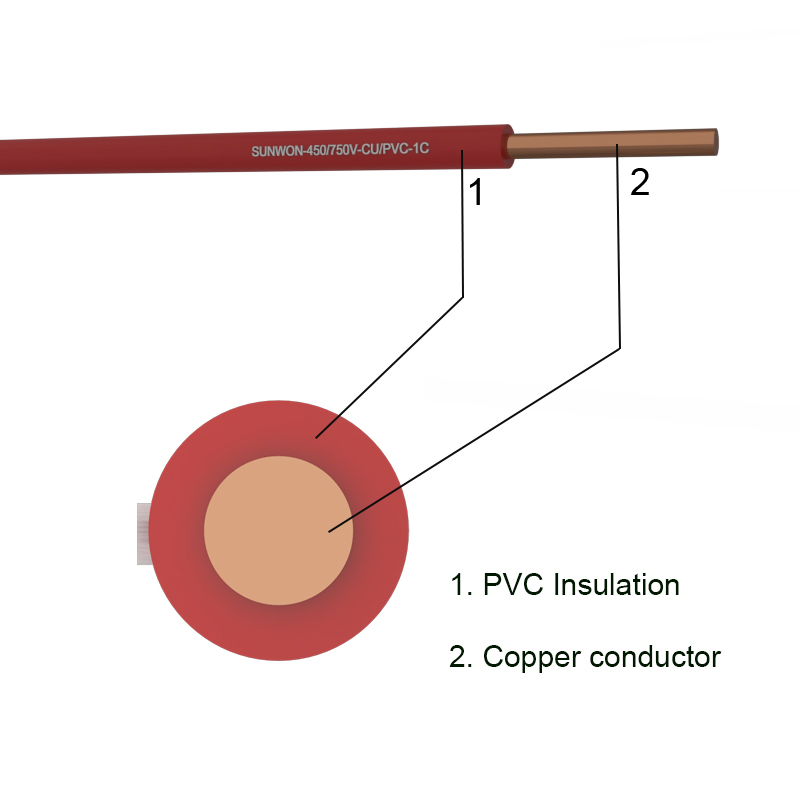

1-hard core wire SUNWON-450/750V-CU/PVC-1C structure

1-hard core wire SUNWON-450/750V-CV 1

SUNWON-450/750V-CU/PVC-1C 1-core hard-wired wire is used for low voltage network and civil electricity with working voltage up to 450/750V.

1. Applicable standards : TVCN 6610-3 .

2. Product structure:

Conductor: Concentrically twisted and braided from many soft annealed copper wires;
PVC insulation.

3. Rated voltage (Uo/U) : 450/750V

4. Maximum conductor temperature : 70 degrees Celsius

5. Nominal cross-sectional area : From 0.5mm2 to 10mm2.

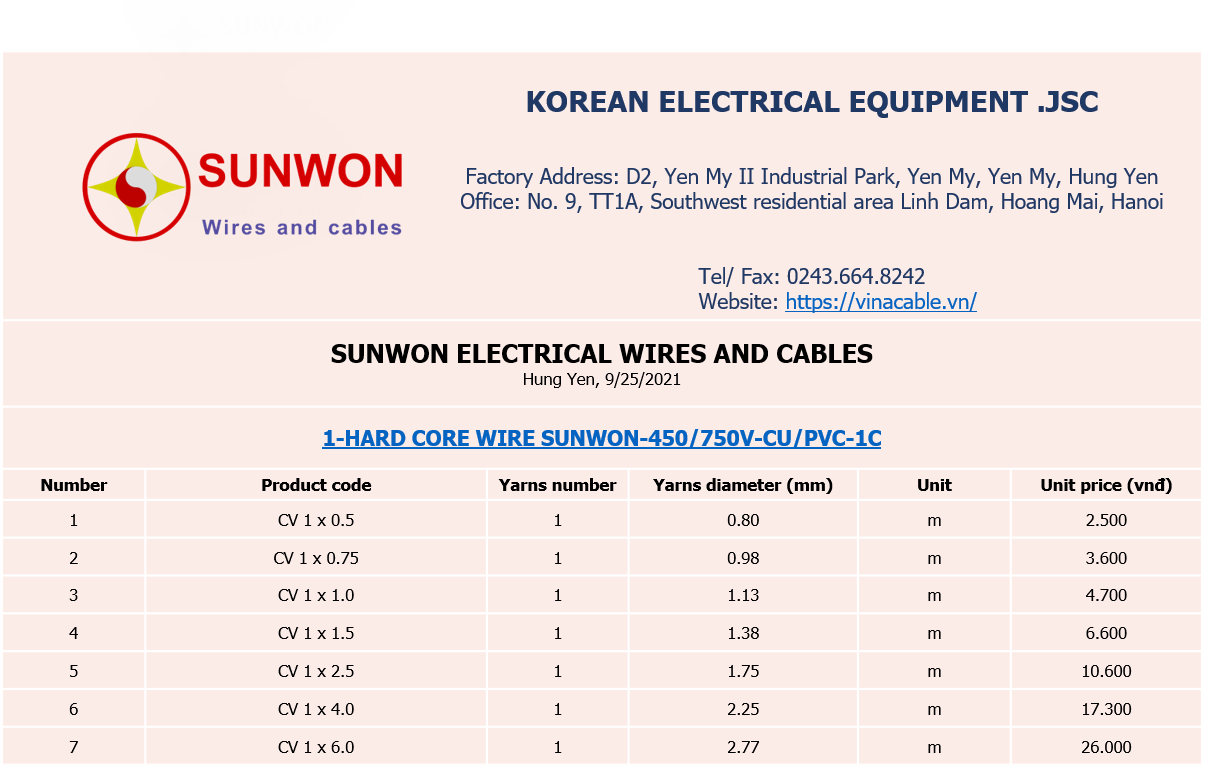

Download quote

Category: Electrical Wires

…

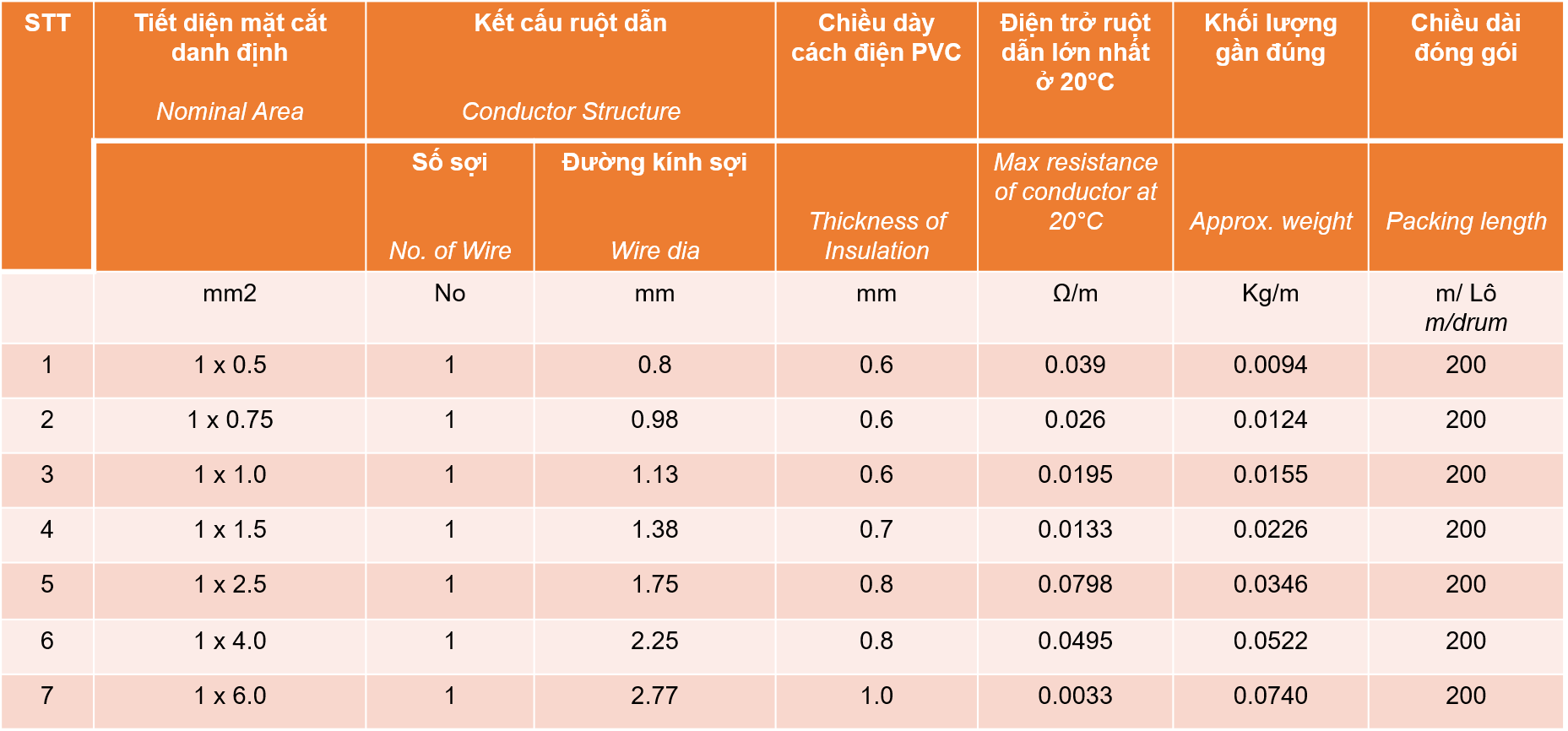

The product of 1-hard core wire SUNWON-450/750V-CU/PVC-1C is specified in accordance with TCVN 6610-3:2000, the technical requirements for wire production are as follows:

Single-core unsheathed cable with solid conductor and conductor temperature of 70 degrees Celsius for internal installation (6610 TCVN 05 or 227 IEC 05): Rated voltage up to 300/500V, number of conductors 1 and grade 1 conductors (solid 1-stranded rigid conductor), PVC/C insulation thickness from 0.6mm, average outer diameter from 1.9mm, maximum conductor temperature in normal use is 70 degrees Celsius;

1-hard core wire SUNWON-450/750V-CU/PVC-1C is classified based on the nominal cross-section of the conductor core, including: CV 1×0.5, CV 1×0.75, CV 1×1.0, CV 1×1.5, CV 1×2.5, CV 1×4.0, CV 1×6.0…
