1-core soft power wire SUNWON-300/500V-CU/PVC 3

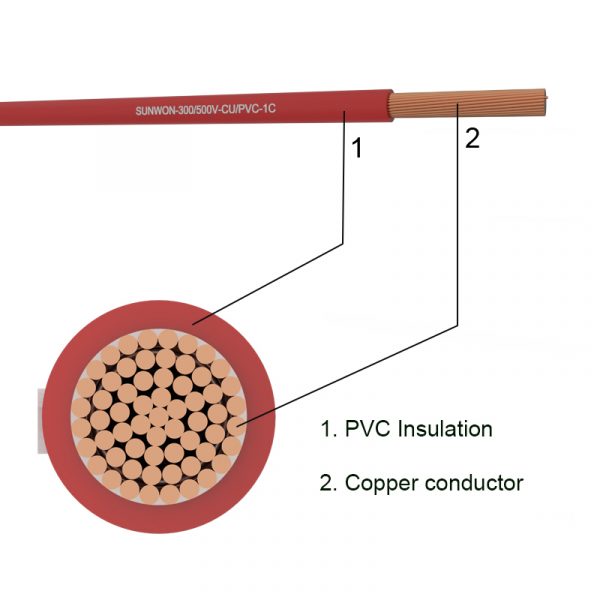

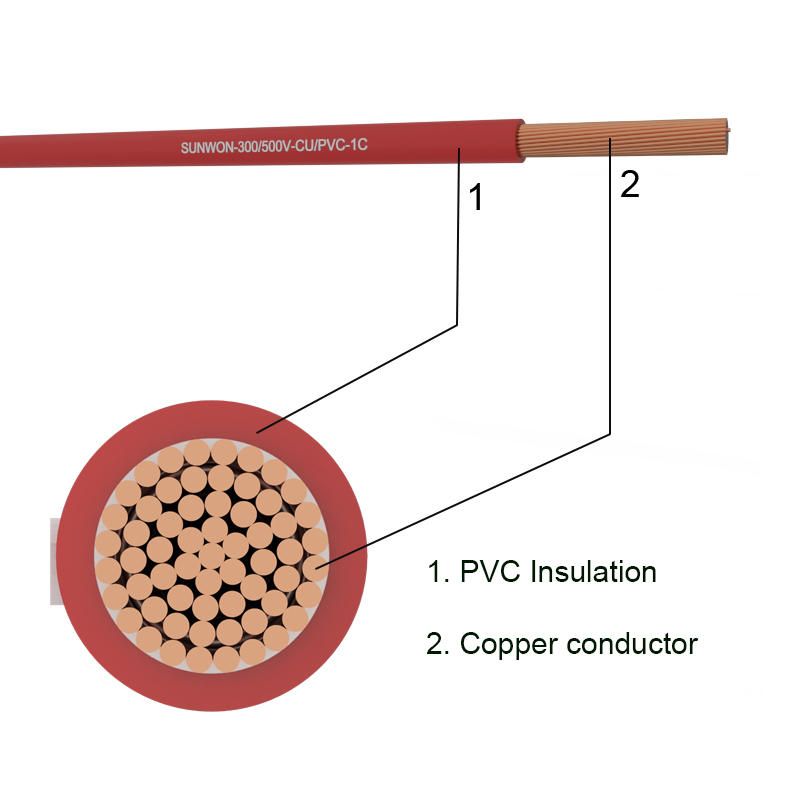

1-core soft power wire SUNWON-300/500V-CU/PVC structure

1-core soft power wire SUNWON-300/500V-CV 1x

Single-core flexible wire, consisting of many soft copper wires, is used for low-voltage networks and civil electricity with working voltage up to 300/500V.

1. Applicable standards : TVCN 6610-3 or TCVN 6610-5 ;

2. Product structure:

Conductor: Concentrically twisted and braided from many soft annealed copper wires;
PVC insulation.

3. Rated voltage (Uo/U) : 300/500V

4. Maximum conductor temperature : 70 degrees Celsius

5. Nominal cross-sectional area : From 0.5mm2 to 10mm2.

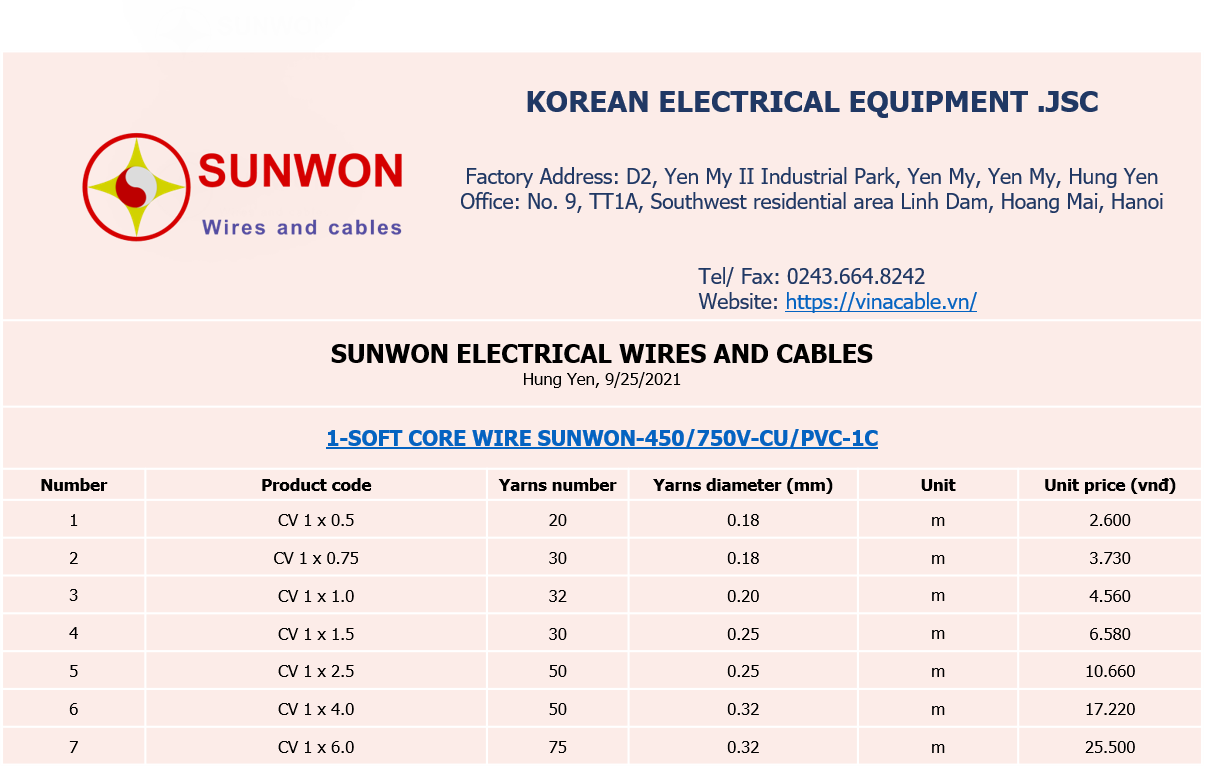

Download quote

Category: Electrical Wires

…

Product of 1-core soft-core civil electrical wire SUNWON-300/500V-CU/PVC is specified in accordance with TCVN 6610-3:2000, technical requirements for wire production are as follows:

C pressure is not jacketed cores with conductor soft and temperature conductor is 70 degrees C for installation inside (6610 ISO 06 or 227 IEC 06): nominal voltage 300 / 500V, the number of conductor 1 and class 5 conductors (soft conductors), PVC/C insulation thickness from 0.6mm, average outer diameter from 2.1mm, maximum conductor temperature in normal use is 70 degrees Celsius;

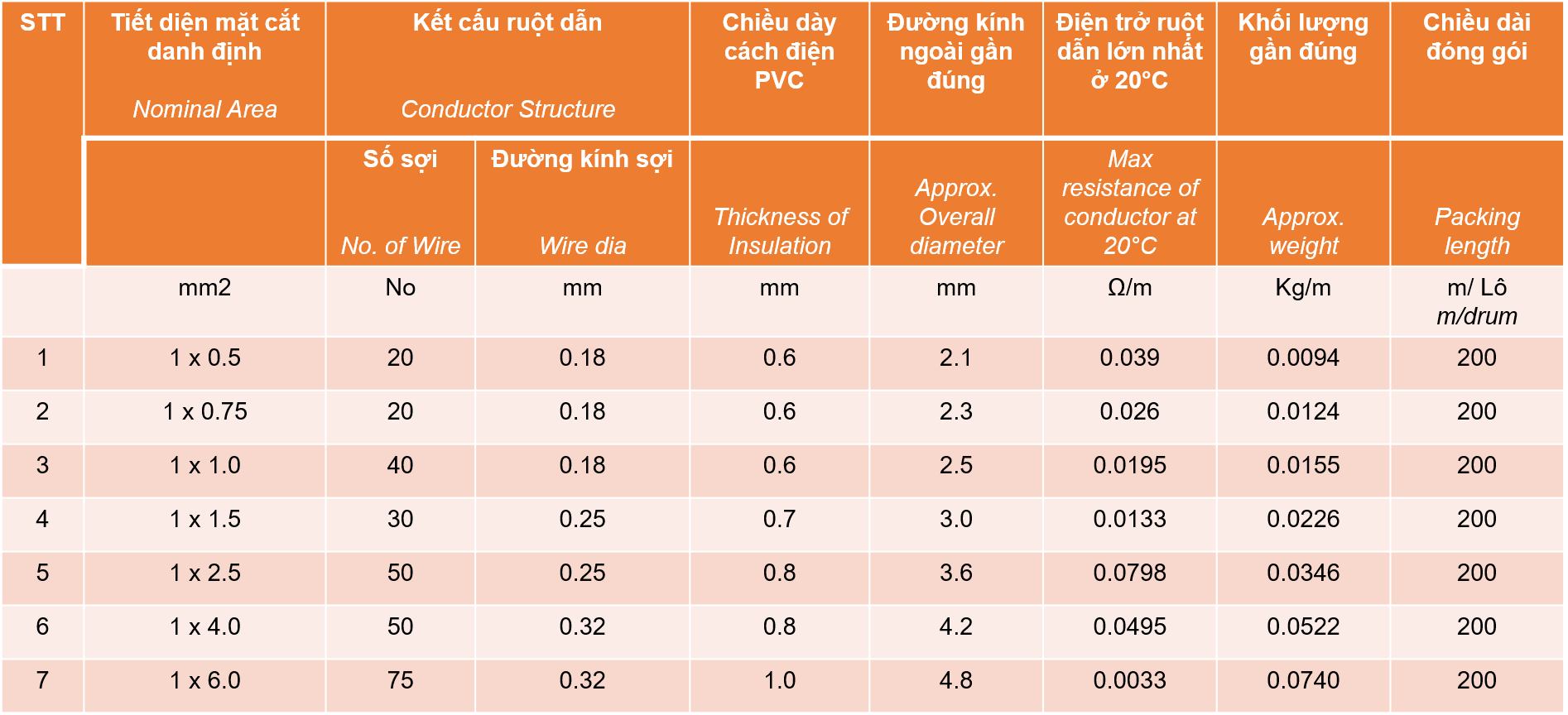

1-core civil wire SUNWON-300/500V-CU/PVC is classified based on the nominal cross-section of the conductor core, including: CV 1×0.5, CV 1×0.75, CV 1×1.0, CV 1×1.5, CV 1×2.5, CV 1×4.0, CV 1×6.0…
