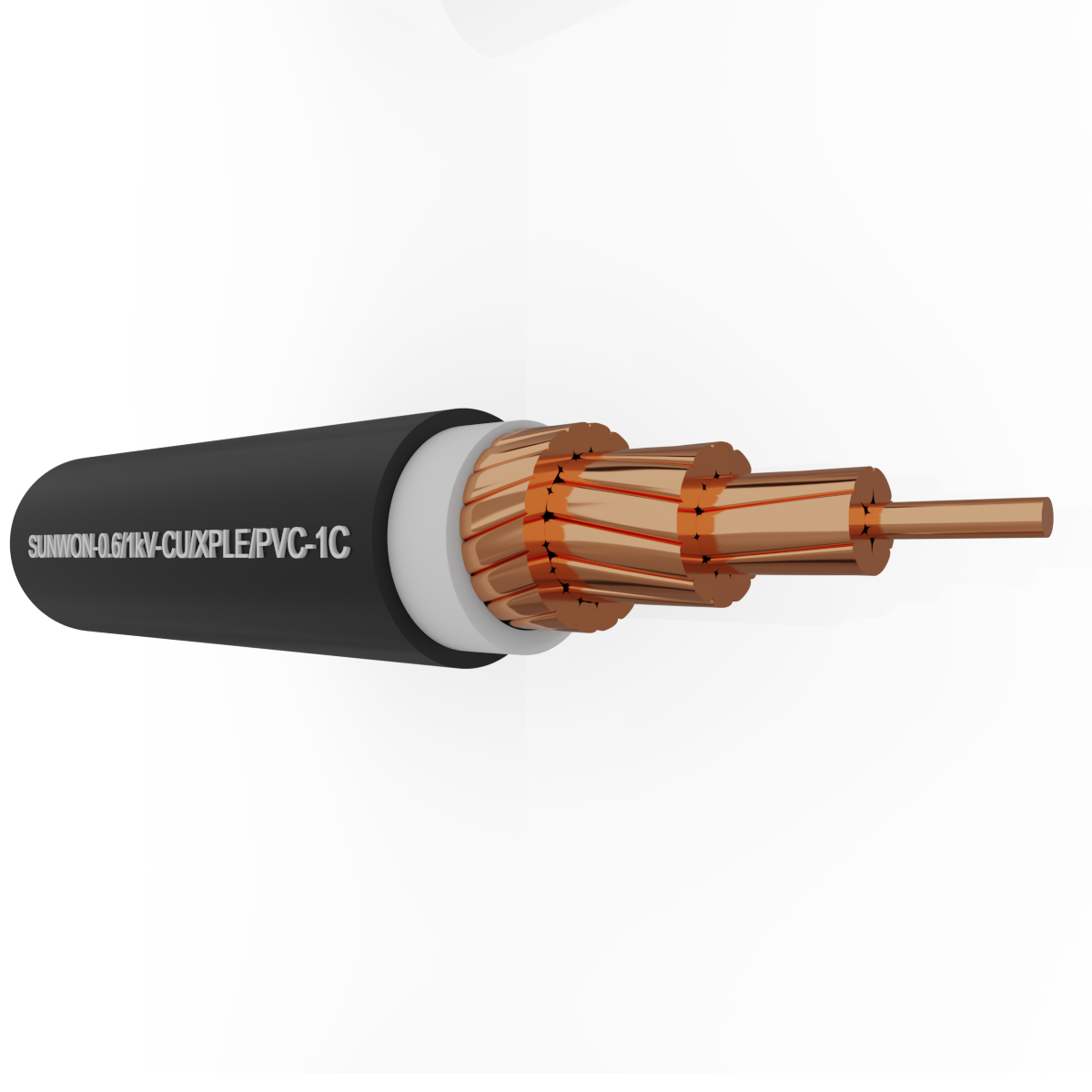

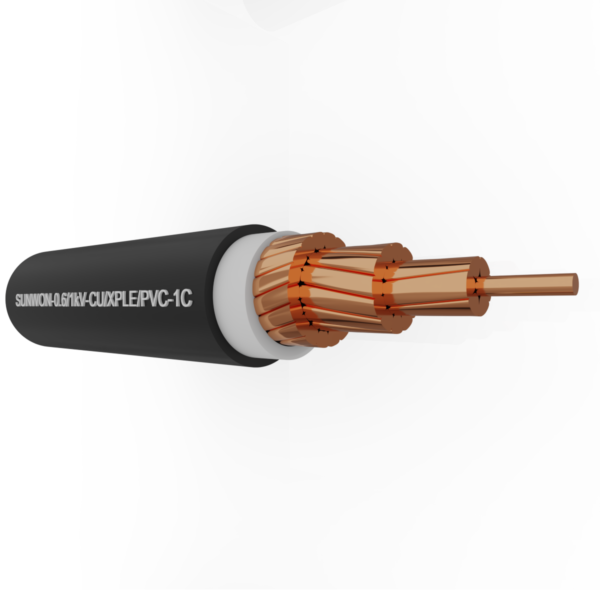

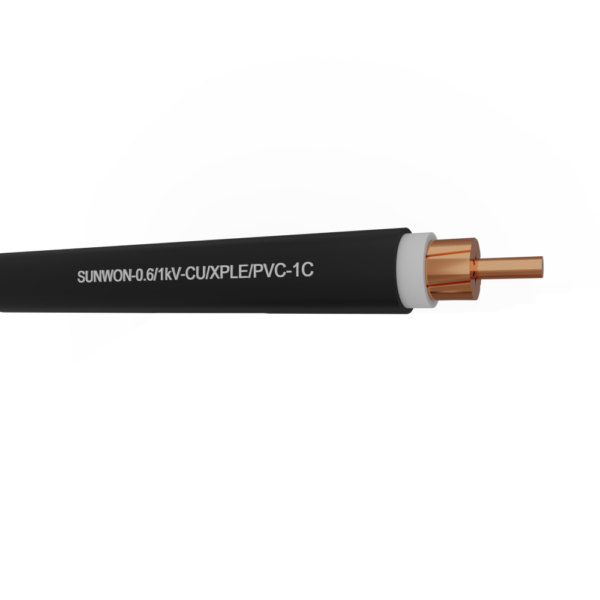

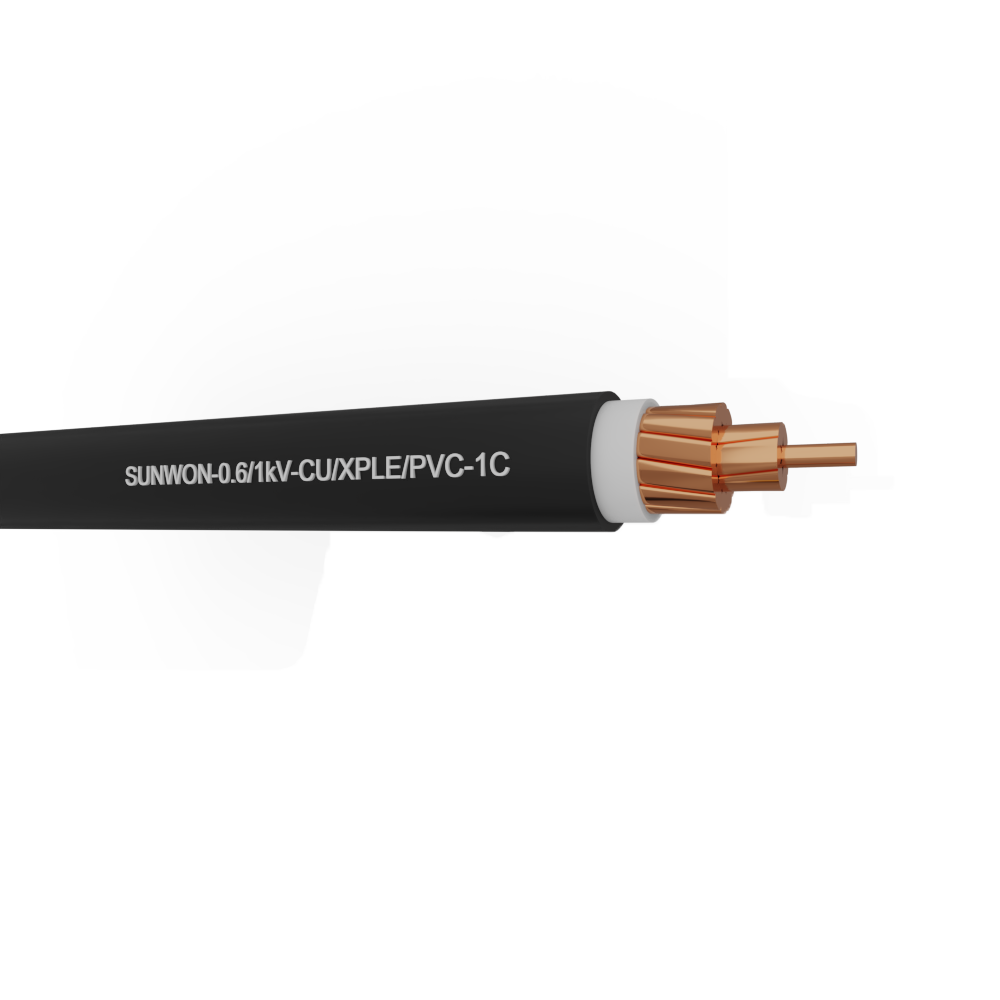

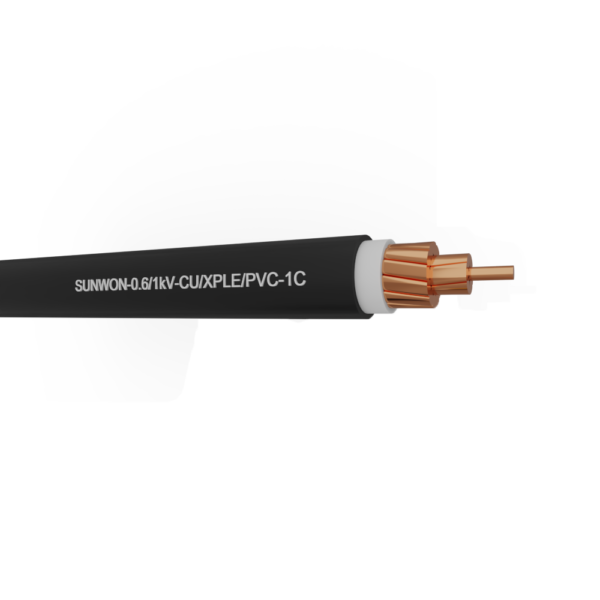

1-core sheathed copper cable SUNWON-0.6/1kV-CU/XLPE/PVC

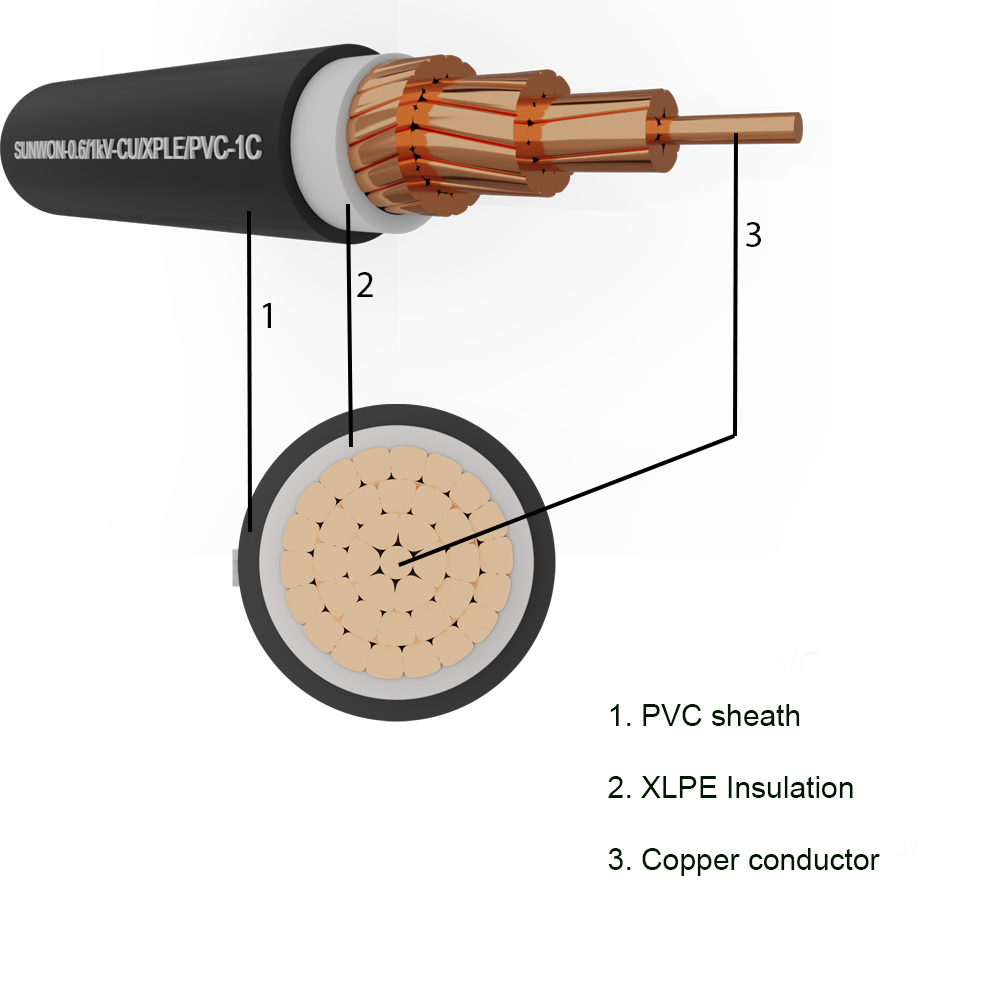

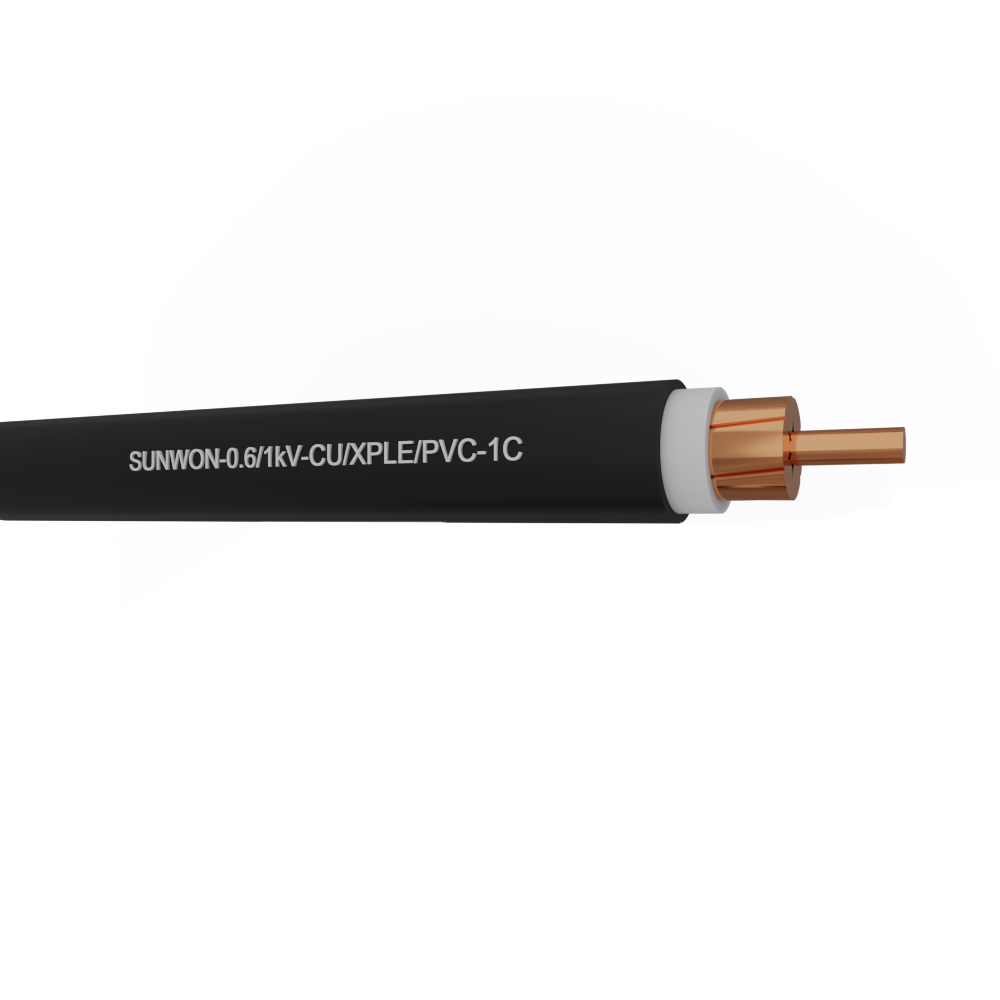

1-core sheathed copper cable SUNWON-0.6/1kV-CU/XLPE/PVC structure

1-core copper cable SUNWON-0.6/1kV-CXV 1x

Single-core electrical cable with copper conductor, covered with 2 layers including PVC outside and XLPE inside, used for low voltage network, working voltage up to 0.6/1kV.

1. Applicable standards : TCVN 5935-1: 2013 ;

2. Product structure:

Conductive core is twisted and braided concentrically from many electrical engineering circular copper wires (can be pressed tightly);
Insulation consists of white XLPE, black PVC protective sheath.

3. Rated voltage (Uo/U) : 0.6/1kV.

4. Maximum conductor temperature : 90 degrees Celsius.

5. Nominal cross-section : From 1.5mm2 to 300mm2.

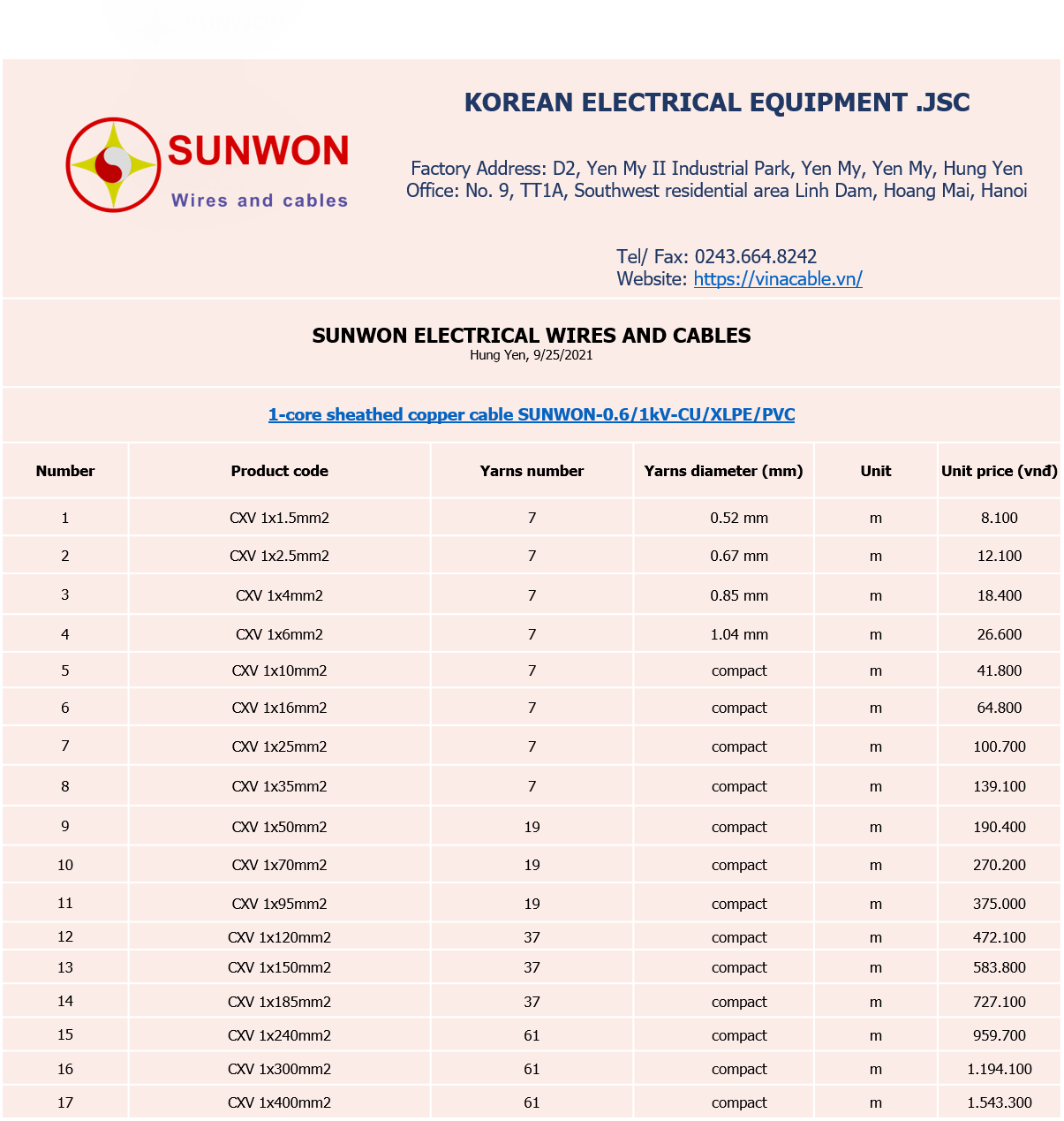

Download quote

Category: Low Voltage Cables

…

1-core sheathed copper cable products SUNWON-0.6/1kV-CU/XLPE/PVC are specified in TCVN 5935-1:2013, product specification requirements are as follows:

Nominal voltage 0.6/1 (1.2) kV;
Insulating compound:
- PVC thermoplastic;
- Cross-linked insulating compound: Ethylene propylene rubber or the like (EPR), molecular rubber or high hardness ethylene propylene rubber (HEPR), Cross-linked polyethylene (XLPE).
The maximum conductor temperature in normal operation is 70 degrees C (if PVC insulation) and 90 degrees C (if XLPE insulation).
Conductors: Must be class 1 (1 solid conductor) or class 2 (braided conductor) (according to IEC 60228:2004) of annealed copper/coated with aluminum or aluminum alloy;

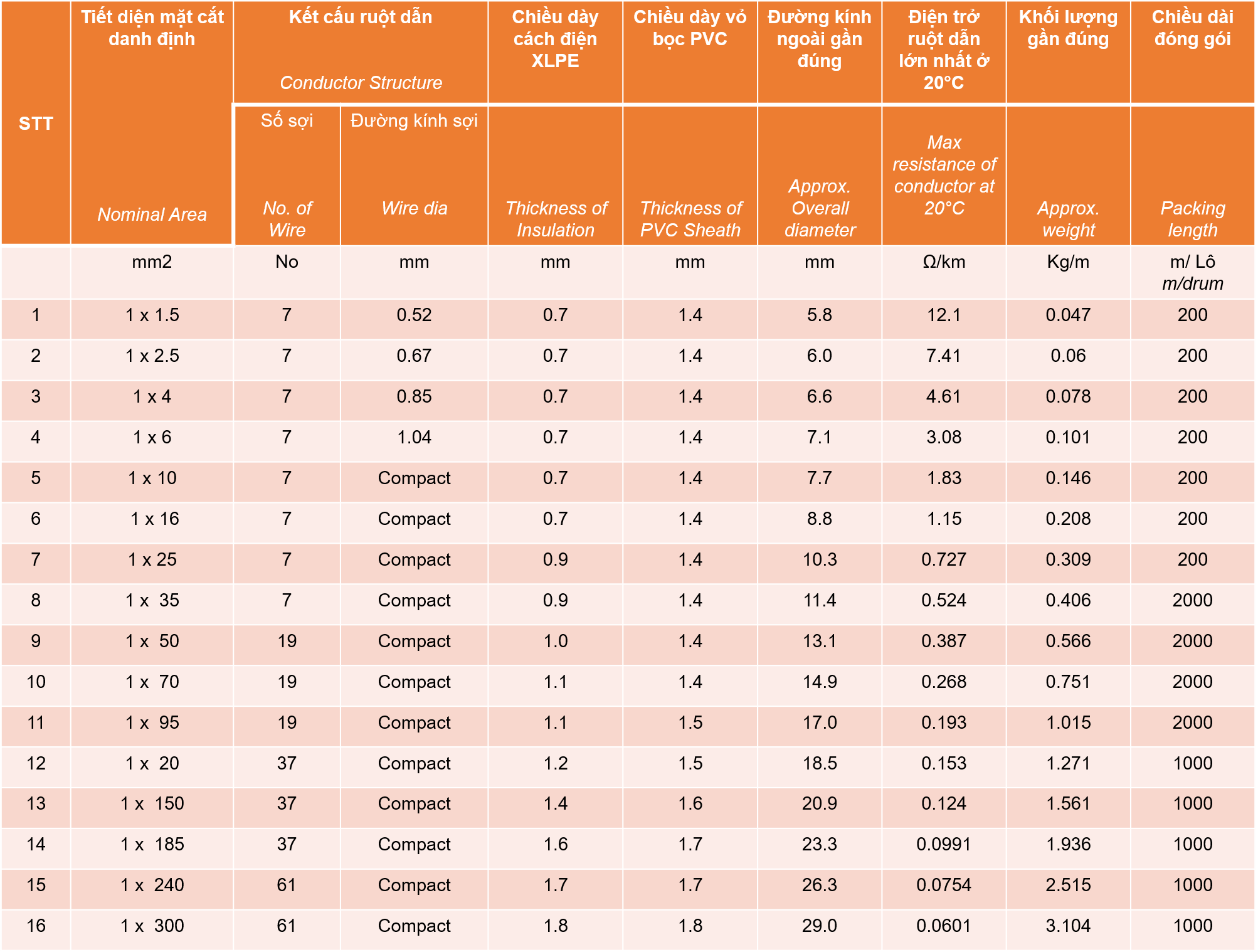

Regulations on the minimum thickness of each insulating compound on each product classified according to the following nominal cross-sections: 1.5 and 2.5mm2, 4 and 6mm2, 10 and 16mm2, 25 and 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2…

1-core sheathed copper cable SUNWON-0.6/1kV-CU/XLPE/PVC is classified according to the nominal cross-sectional area as follows: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2 , 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2…
