1 Core Aluminum Cable SUNWON-450/750V-AL/PVC or AL/XLPE

1-Core Muyller Aluminum Cable SUNWON-0.6/1kV-AL/XLPE/PVC/ATA/PVC-1C structure

1 Core Aluminum Cable SUNWON-450/750V-AV/AX 1x

PVC or XLPE coated aluminum core power cable is used for low voltage network, working voltage up to 450/750V.

1. Applicable standards : TCVN 6610-3 ;

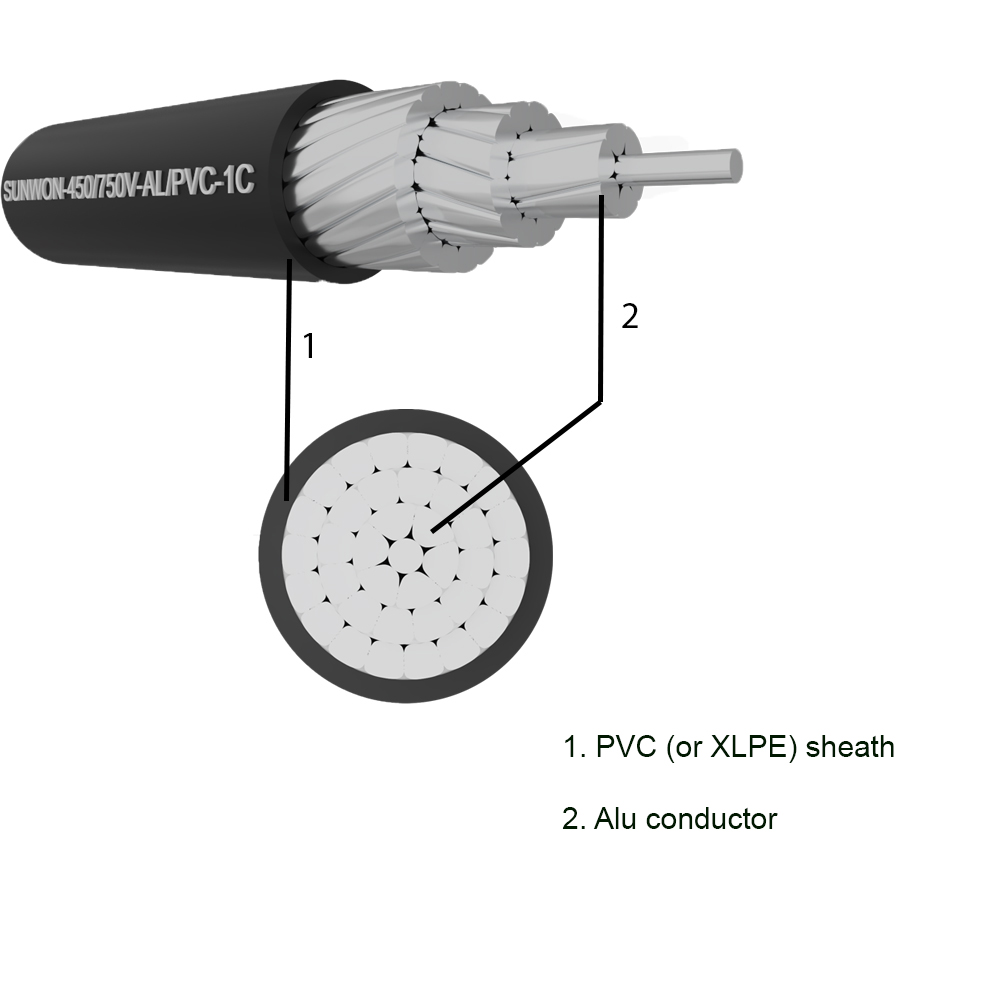

2. Product structure:

Conductor: Concentrically twisted and braided from many hard aluminum strands;
Insulated PVC or XLPE in black or color on request.

3. Rated voltage (Uo/U) : 450/750V.

4. Maximum conductor temperature : 70 degrees Celsius.

5. Nominal cross-section : From 10mm2 to 500mm2.

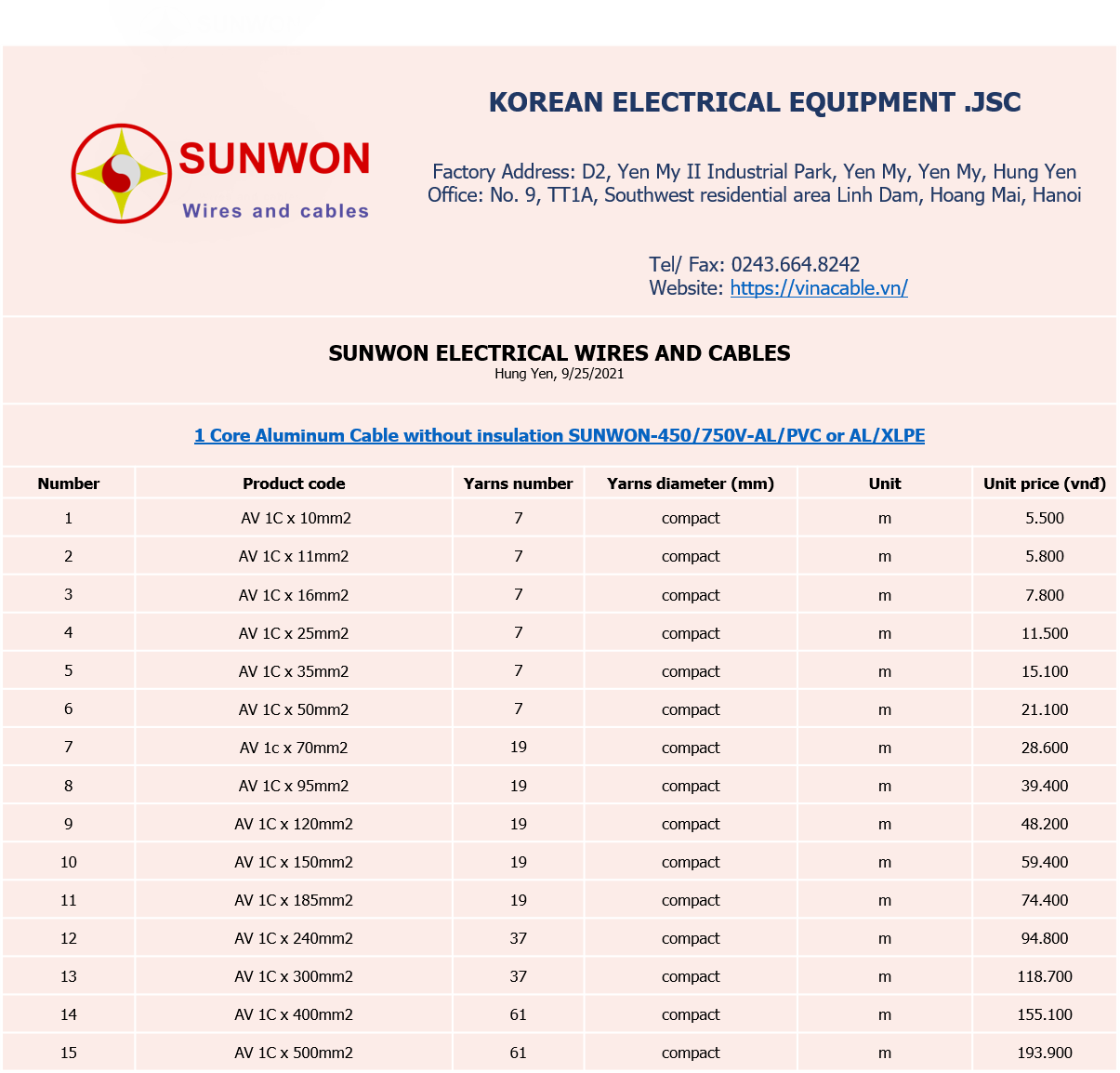

Download quote

Category: Electrical Wires

…

Single-core sheathed aluminum cable products SUNWON-450/750V-AL/PVC or AL/XLPE are specified in 6610 TCVN 01 or 227 IEC 01 according to the following points:

Single-core unsheathed cable with rigid conductor for general use (6610 TCVN 01 or 227 IEC 01): Rated voltage up to 450/750V, number of conductors 1 and class 1 or class 2 conductors (cores respectively solid conductor or stranded conductor), PVC/C insulation thickness from 0.7mm, approximate outer diameter from 2.6mm, maximum conductor temperature in normal use is 70 degrees Celsius.

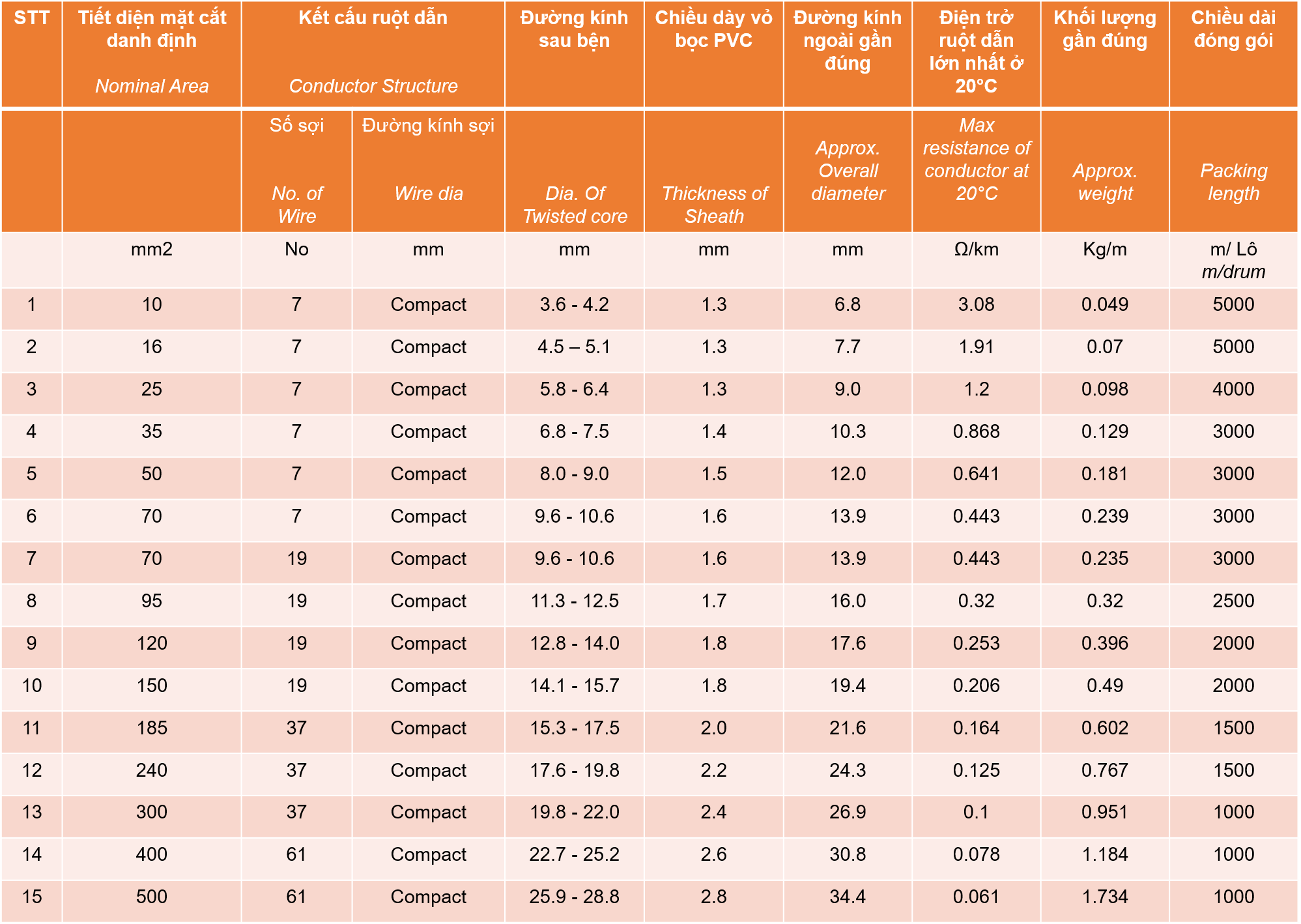

Single-core sheathed aluminum cable SUNWON-450/750V-AL/PVC or AL/XLPE with concentrically braided rigid aluminum conductor (grade 2 conductor) from multiple electrotechnical round aluminum wires, rated cross-sectional includes (mm2): AV 1×10, AV 1×16, AV 1×25, AV 1×35, AV 1×50, AV 1×70, AV 1×95, AV 1×120, AV 1×150 , AV 1×185, AV 1×240, AV 1×300, AV 1×400, AV 1×500.
